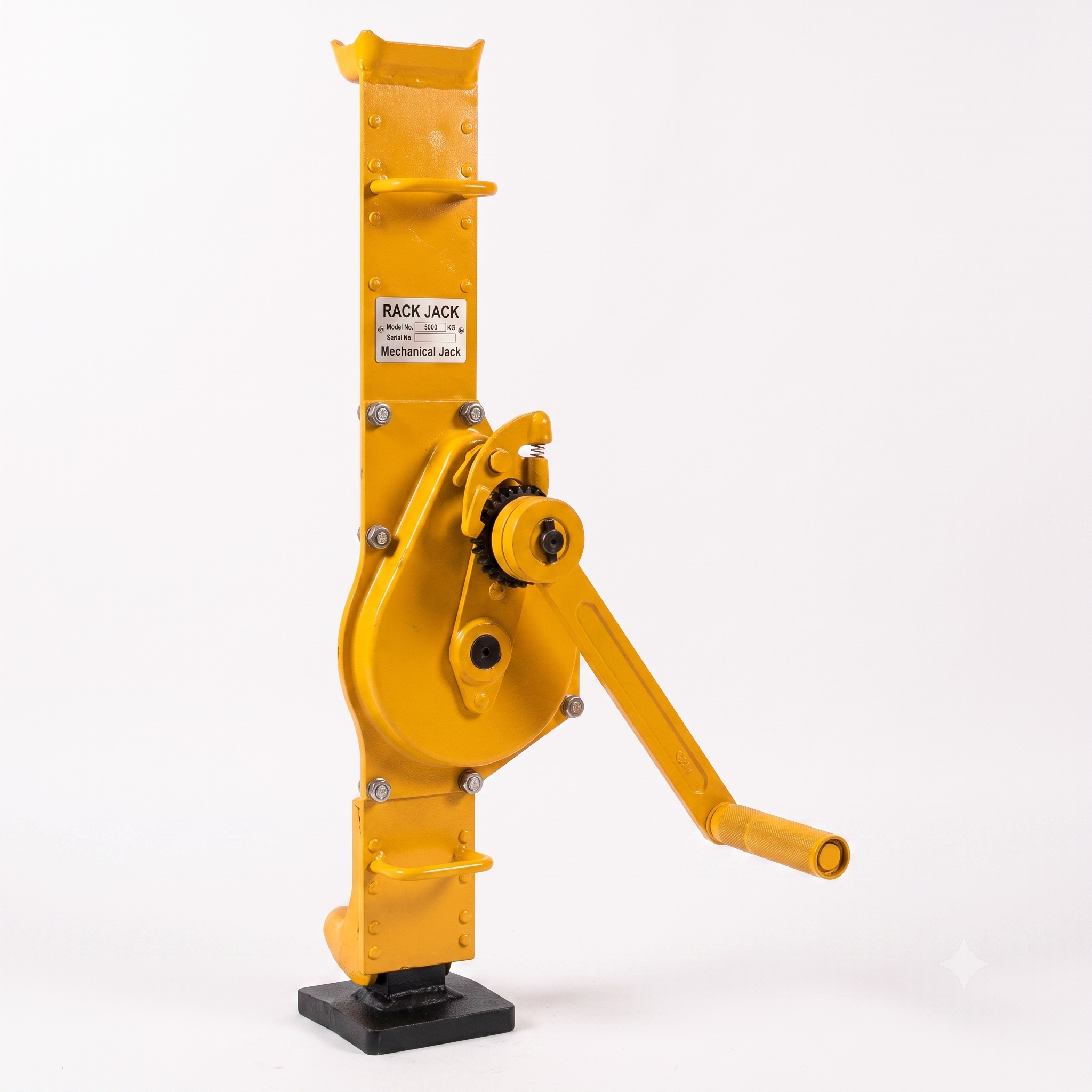

Europull Rack Jack
Heavy-duty mechanical steel rack jack (railway jack) engineered in accordance with DIN 7355 for lifting, bracing, and leveling heavy machinery, railway stock, and structural steel.
- Capacity3t - 20t
- TypeMechanical Rack Jack
Need sizing help? Email info@europull.com
- Certified to DIN 7355
- 5 models available
Technical Specifications
Model-by-model data for the Europull Rack Jack range.
| Model | Capacity (Tons) | Lift Height (mm) | Toe Height Min (mm) | Total Height (mm) | Weight (kg) |
|---|---|---|---|---|---|
| EP-RJ03 | 3.0 Ton | 350 mm | 60 mm | 735 mm | 20 kg |
| EP-RJ05 | 5.0 Ton | 350 mm | 70 mm | 735 mm | 28 kg |
| EP-RJ10 | 10.0 Ton | 350 mm | 80 mm | 800 mm | 46 kg |
| EP-RJ16 | 16.0 Ton | 320 mm | 90 mm | 800 mm | 65 kg |
| EP-RJ20 | 20.0 Ton | 300 mm | 100 mm | 860 mm | 85 kg |
Need a model or configuration not listed? Email our engineering team or download the full catalog (PDF).
Key Parameters
| Parameter | Specification | Highlight |
|---|---|---|
| Standard / Norms | DIN 7355 / CE Certified | Certified |
| Rated Capacity | 3 Ton to 20 Ton (Head and Toe Loading) | 3t - 20t |
| Lifting Points | Full Rated Capacity on Both Head and Claw (Toe) | Dual Point |
| Crank Handle | Safety Crank with Double Friction Discs and Pawls | Recoil-Proof |
| Material | Drop-Forged High Tensile Steel Rack and Gears | Hardened |
| Safety Factor | 4:1 Working Safety Ratio | Proof Tested |
Key Features & Advantages
Dual Lifting Points
Lifts full working load directly on the top head or low clearance bottom claw.
Safety Recoil-Proof Crank
Spring-loaded friction disc crank prevents handle kick-back when lowering.
Standards & Compliance
DIN 7355 Standard
Mechanical rack jack safety standard.
CE Certified
Individually proof tested.
Product Overview
An essential mechanical jack for railway construction, structural shoring, plant relocation, and mining operations where hydraulic fluids cannot be used.
Frequently Asked Questions
The Europull Rack Jack is available in 5 models: EP-RJ03, EP-RJ05, EP-RJ10, EP-RJ16, EP-RJ20. Capacity (Tons) ranges from 3.0 Ton to 20.0 Ton. Full figures for every model are in the technical specifications table on this page.
The Europull Rack Jack covers 3t - 20t.
The Europull Rack Jack is manufactured to DIN 7355.
The Europull Rack Jack's lifting Points: Full Rated Capacity on Both Head and Claw (Toe).
The Europull Rack Jack's crank Handle: Safety Crank with Double Friction Discs and Pawls.
The Europull Rack Jack's material: Drop-Forged High Tensile Steel Rack and Gears.
