Heavy-Duty Industrial Winches

High capacity hydraulic winch and electrical winch systems engineered for extreme towing, marine, mining, and oilfield recovery operations worldwide.

Hydraulic up to 30t (66,000 lbs) 24V DC Electric up to 11.3t (25,000 lbs) IP67 Waterproof
  1. Home
  2. Products
  3. Industrial Winches
HWV 15000 15,000 lbs (6,804 kg) Hydraulic • Recovery Truck Install

The Europull Engineering Advantage

Global engineering excellence in towing, maritime, mining, and oilfield environments since 1940

Since 1940, Europull Hebentechnik UK Ltd has been synonymous with uncompromising strength in the field of heavy-duty pulling, lifting, and recovery. As a premier manufacturer headquartered in the United Kingdom, we engineer industrial winches designed to execute complex operations in the world's most extreme towing, marine, mining, and construction environments.

From the towering offshore platforms of the Gulf of Mexico to high-tech shipyards and rigorous marine hubs globally, Europull Hebentechnik UK Ltd delivers engineering excellence. Our team of highly skilled specialists understands that in the oilfield, maritime, and heavy fabrication sectors, there is no room for error.

Our manufacturing capabilities feature precision machining, advanced welding, and custom fabrication, ensuring every winch we produce exceeds the most stringent international safety standards, including CE, EN, and ASME. Europull Hebentechnik UK Ltd equipment is systematically specified for use in highly regulated project environments where safety, durability, and sustained performance are the ultimate priorities.

Global Standards & Support

Europull Hebentechnik UK Ltd winches are certified to international benchmarks and supplied through premier regional hubs worldwide.

  • CE • EN 14492-1 • ASME Certified
  • IP67 Waterproofing Standard
  • Marine & Oilfield Heavy Duty
  • Global Distribution & Stock Hubs

Why Choose Europull Winches?

Field-proven across extreme marine, heavy recovery, and desert industrial environments globally

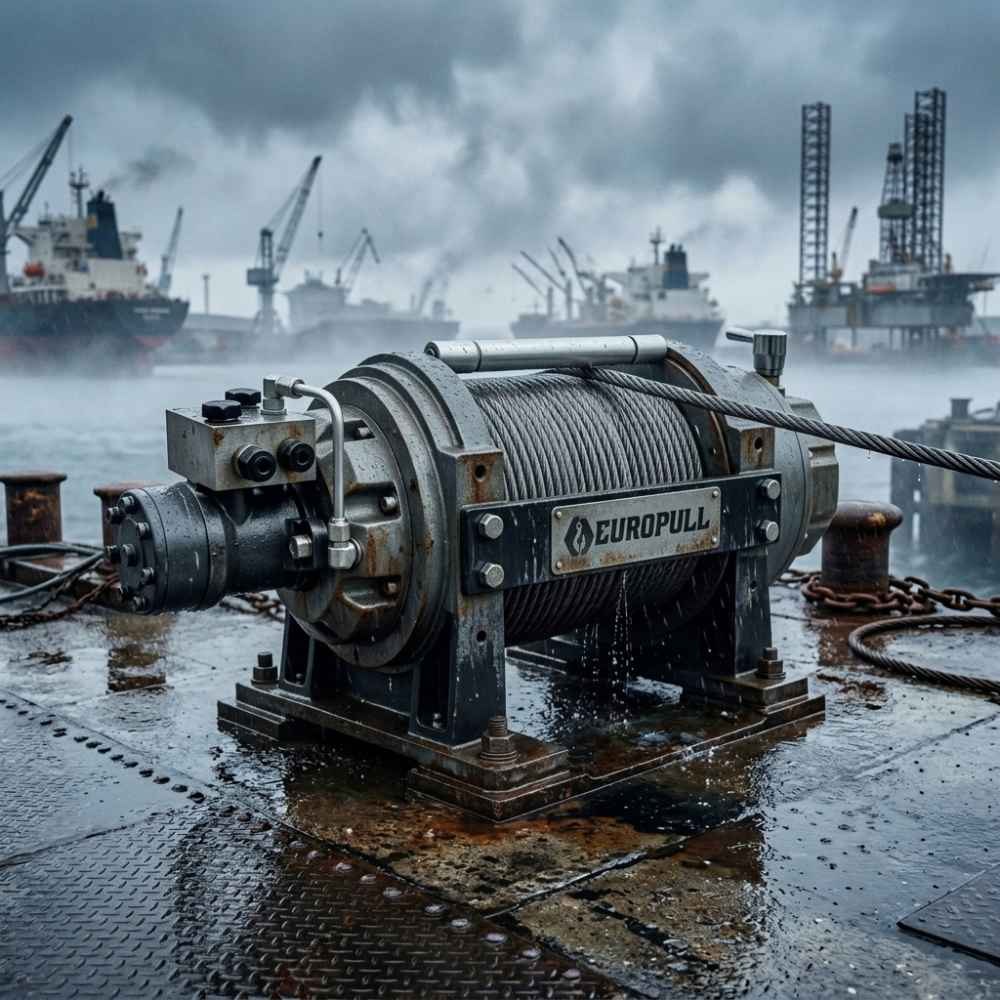

Marine • IP67 Europull HWV 15000 hydraulic winch operating on dockside at a shipyard
Marine & Shipyard Operations

IP67 waterproofed HWV 15000 hydraulic winch operating reliably in wet dockside, slipway, and port environments.

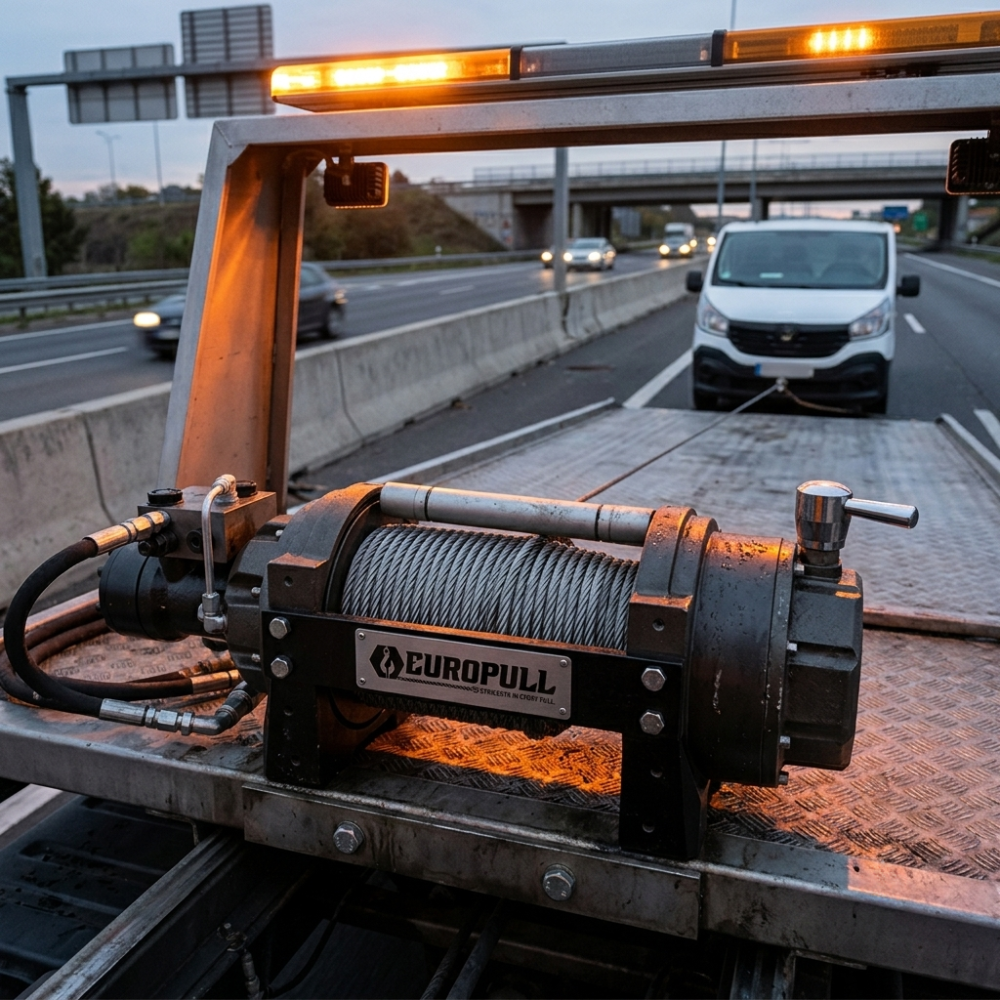

Recovery Fleet Europull HWV 15000 hydraulic winch loading vehicle onto 7-ton recovery truck bed
Commercial Towing Fleets

HWV 15000 hydraulic winch loading heavy vehicles onto a 7-ton recovery truck bed with smooth, positive line control.

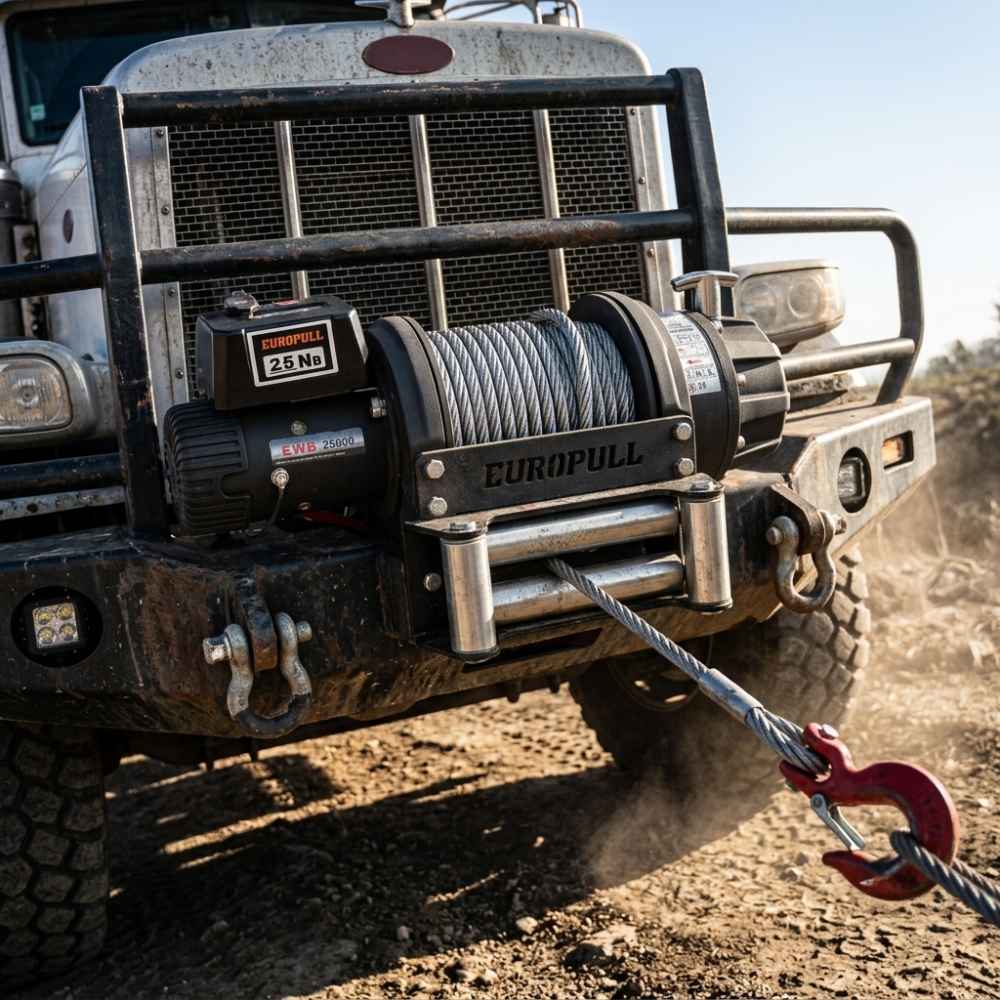

24V DC Electric Europull EWB 25000 24V DC electric winch mounted on 10-ton recovery bumper
10-Ton Recovery Bumper Mount

Heavy-duty EWB 25000 electric winch delivering 25,000 lbs (11,340 kg) of instantaneous pulling power.

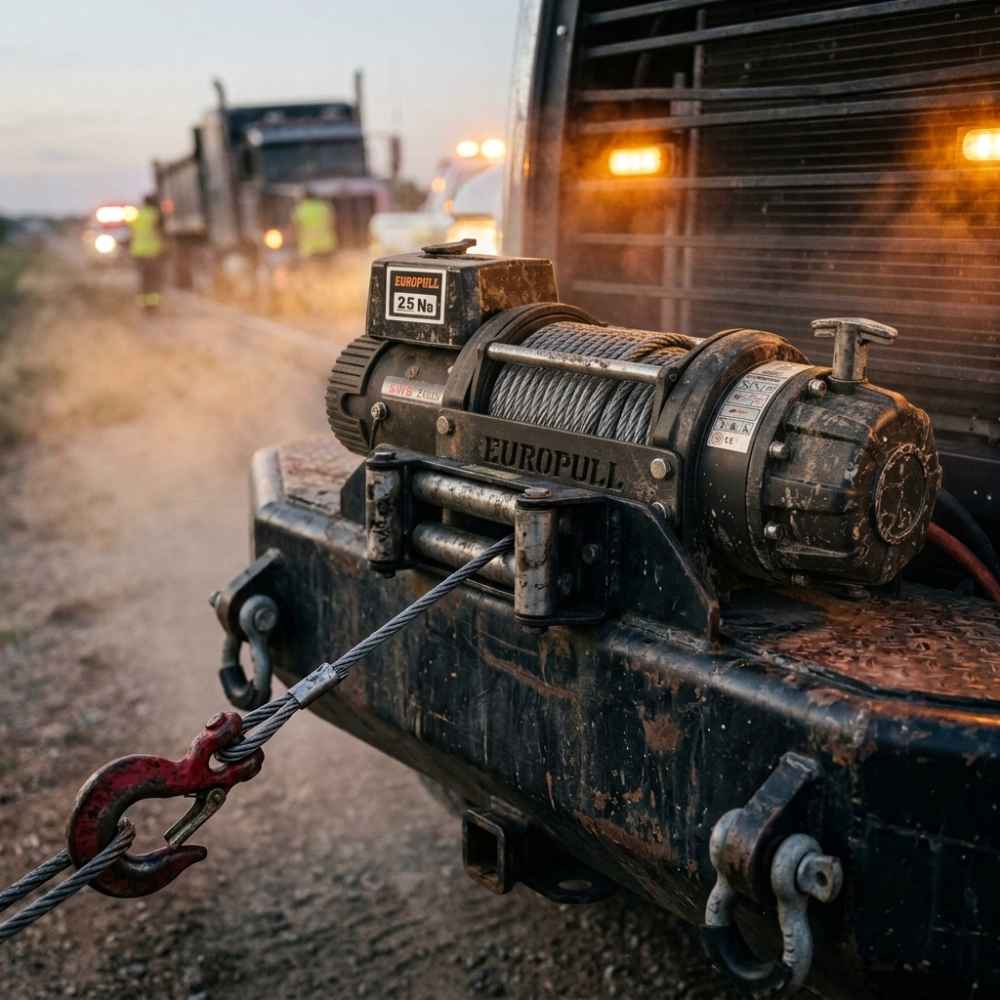

Severe Towing Europull EWB 25000 24V DC electric winch on recovery tow truck steel bumper
Steel Bumper Tow Truck Mount

Rugged 3-stage planetary steel gears and patented ratchet braking for absolute load stability in severe duty.

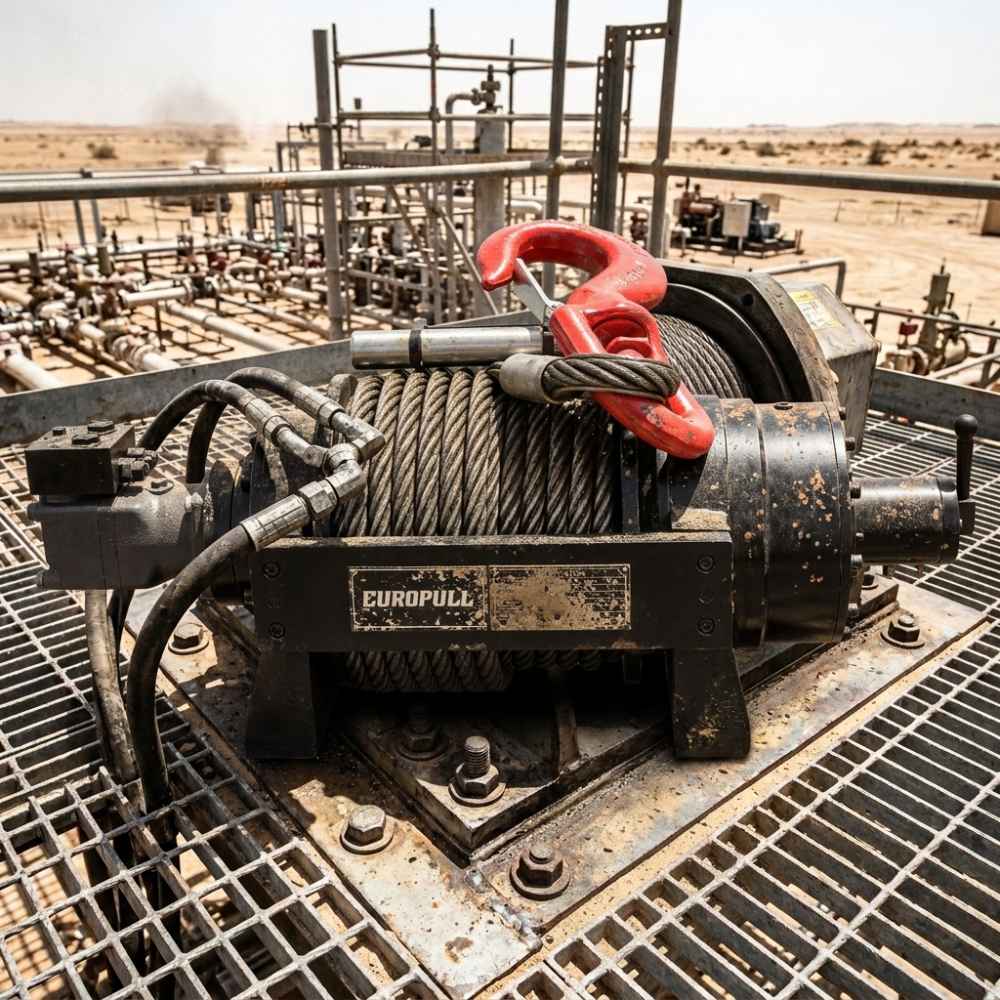

Oilfield & Energy Europull HWE 200 hydraulic winch at oilfield facility
Oilfield & Extraction Facilities

HWE 200 hydraulic winch anchored on heavy structural grating at an energy extraction and petrochemical site.

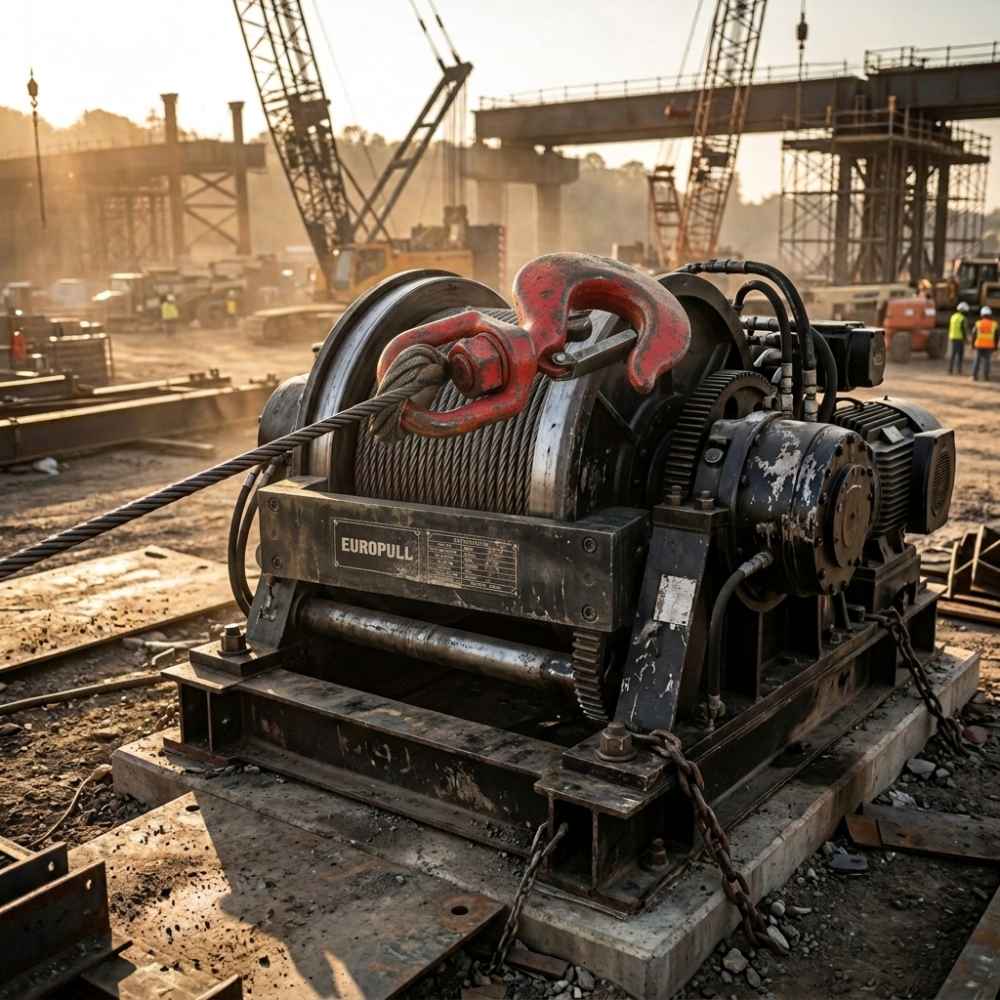

66,000 lbs Power Europull HWE 300 industrial hydraulic winch on construction site
Civil Erection & Tensioning

Flagship HWE 300 anchoring heavy steel wire rope for high-tension positioning on demanding infrastructure projects.

Europull Winch Series Breakdown

Comprehensive engineering across hydraulic winch and electrical winch technologies

Europull HWV Hydraulic Winch Series: Commercial-Grade Pulling Power

10,000 to 15,000 lbs

Engineered for rigorous commercial recovery, erection projects, and towing applications, the HWV Hydraulic Winch Series delivers consistent, heavy-duty pulling power. Fully IP67 waterproofed to protect against dust and moisture, this series utilizes robust planetary steel gears, a manual clutch, and advanced wet-type hydraulic brakes for maximum operational safety.

10,000 lbs

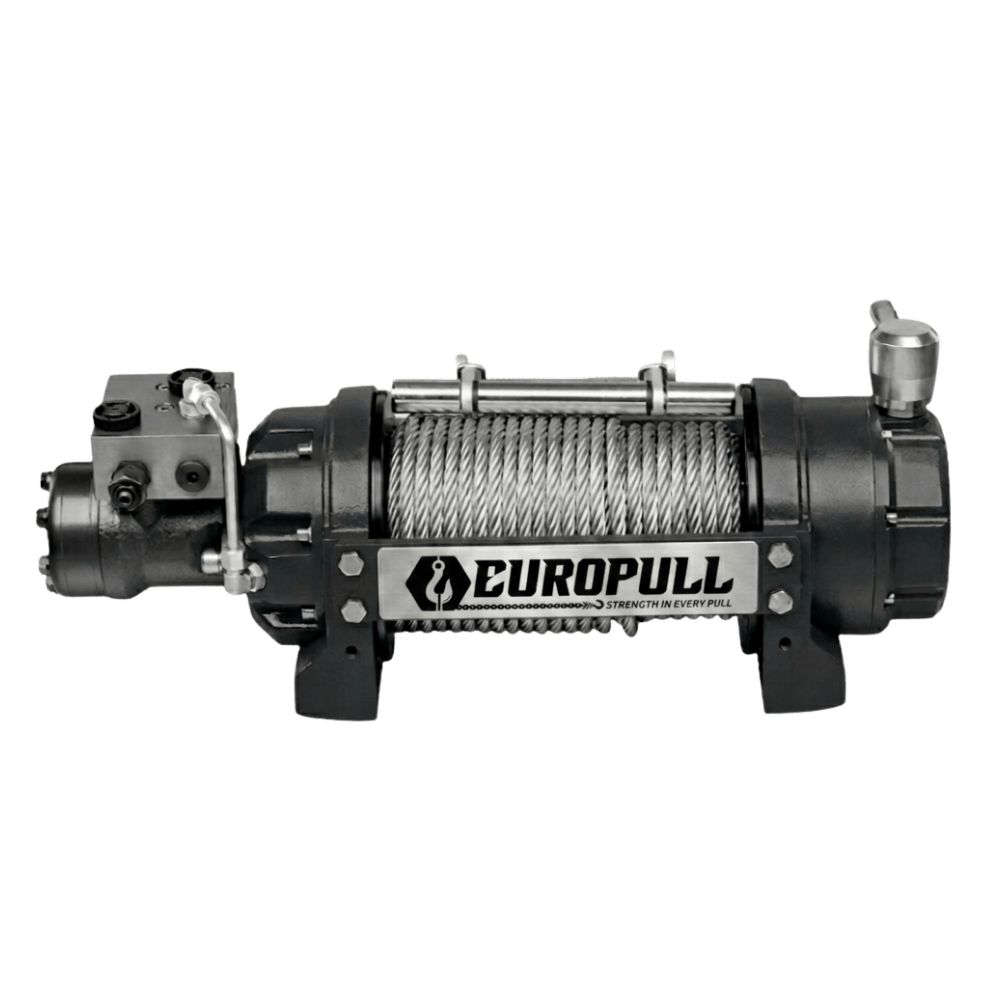

Europull HWV 10000 Hydraulic Winch
HWV 10000
10,000 lbs (4,536 kgs) rated line pull

Ideal for standard commercial recovery and mid-weight industrial tasks.

Pressure: 15 MPa
Oil Flow: 15–60 L/min
Gear Ratio: 17.6:1
Cable: Ø10.2mm × 25.5m
Net Weight: 51 kg
Request Quote HWV 10000 Datasheet (PDF)
12,000 lbs

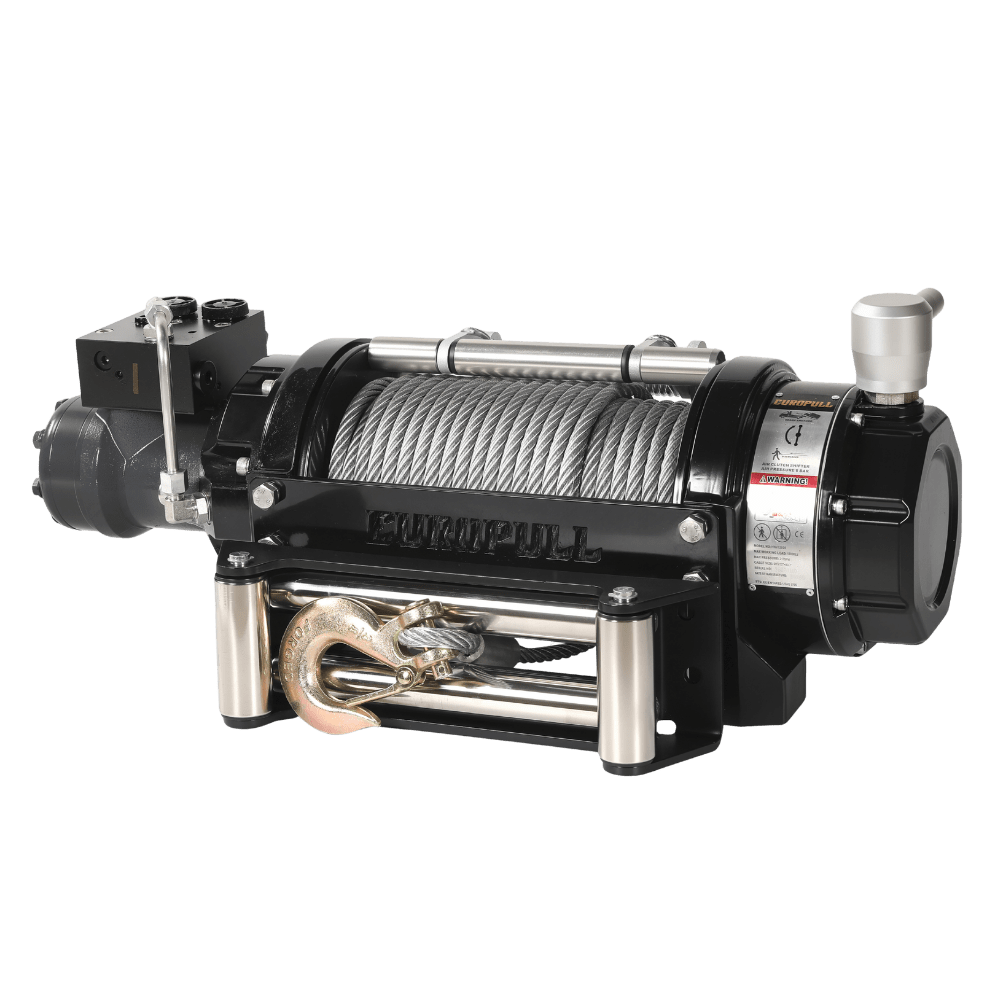

Europull HWV 12000 Hydraulic Winch
HWV 12000
12,000 lbs (5,443 kgs) rated line pull

Enhanced towing capabilities for recovery flatbeds and vehicle transporters.

Pressure: 11 MPa
Oil Flow: 15–45 L/min
Gear Ratio: 28:1
Cable: Ø10.2mm × 25.5m
Net Weight: 42.8 kg
Request Quote HWV 12000 Datasheet (PDF)
15,000 lbs

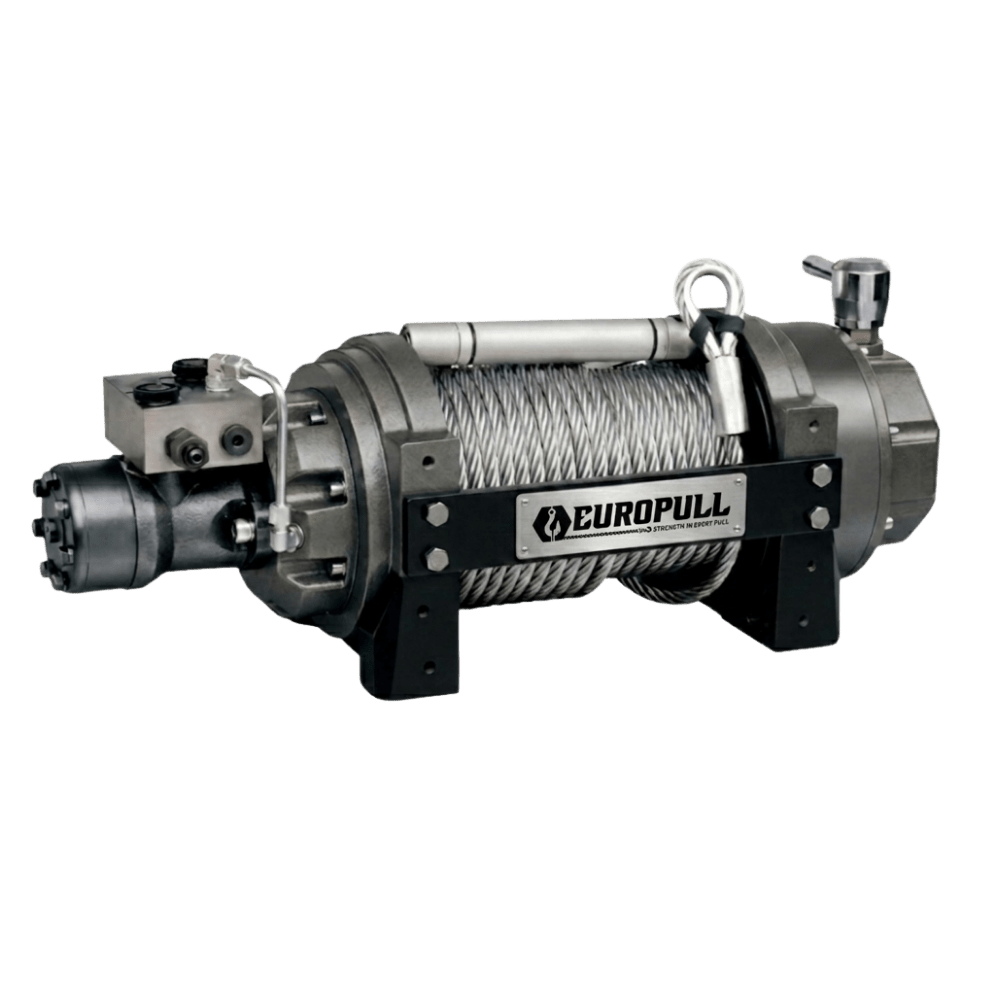

Europull HWV 15000 Hydraulic Winch
HWV 15000
15,000 lbs (6,804 kgs) rated line pull

Designed for severe-duty recovery and heavy equipment handling.

Pressure: 17.5 MPa
Oil Flow: 15–60 L/min
Gear Ratio: 17.3:1
Cable: Ø12mm × 26.5m
Net Weight: 83.6 kg
Request Quote HWV 15000 Datasheet (PDF)

Europull HWE Industrial Hydraulic Winch Series: Extreme Load Management

22,000 to 66,000 lbs (10t to 30t)

The HWE Industrial Hydraulic Series is our heavy-lifting flagship, designed specifically for extreme civil construction, mining, and oilfield applications. Featuring a heavy-duty 2-stage planetary alloy gear system, IP67 waterproofing, and an advanced air & manual mixed clutch system, it offers unmatched torque and load-holding security.

22,000 lbs

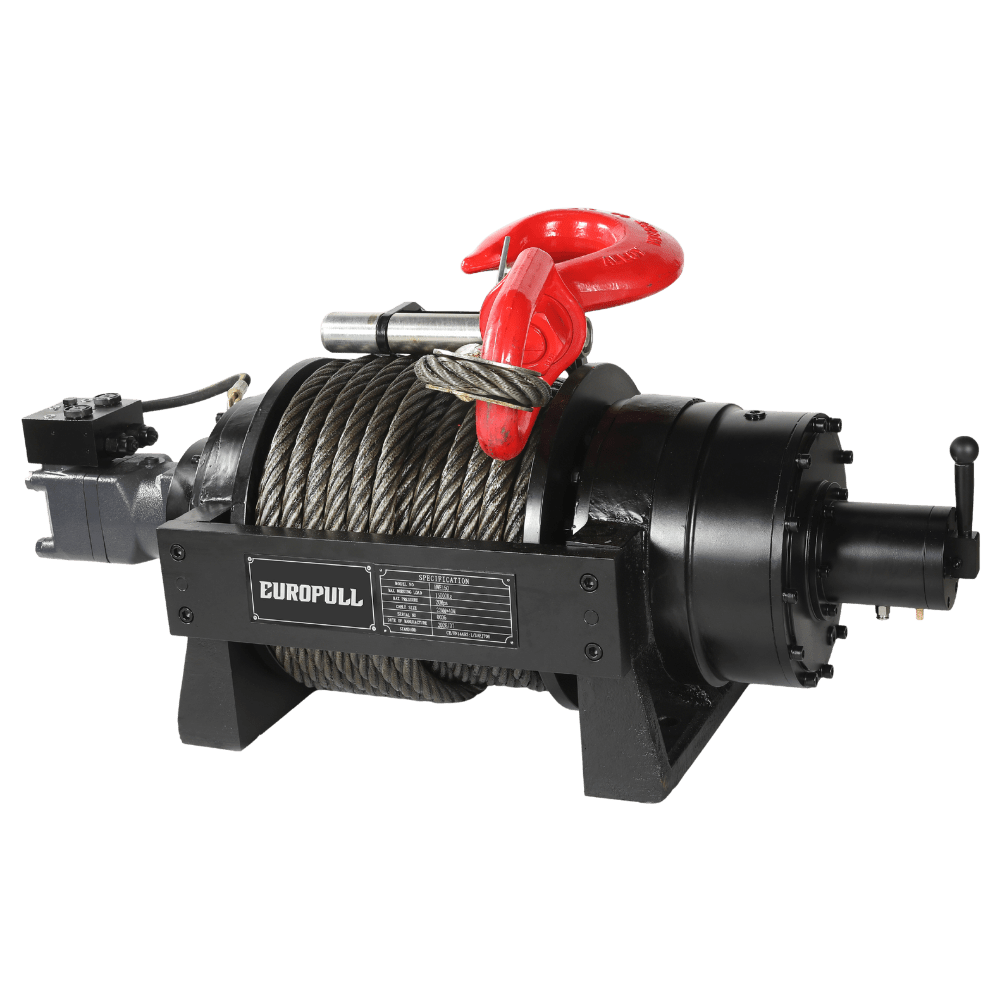

Europull HWE 100 Industrial Hydraulic Winch
HWE 100
22,000 lbs (10,000 kgs)

Rated line pull for demanding industrial site work.

Pressure: 16 MPa
Oil Flow: 15–75 L/min
Gear Ratio: 37.8:1
Cable: Ø18mm × 40m
Net Weight: 340 kg
Request Quote HWE 100 Datasheet (PDF)
33,000 lbs

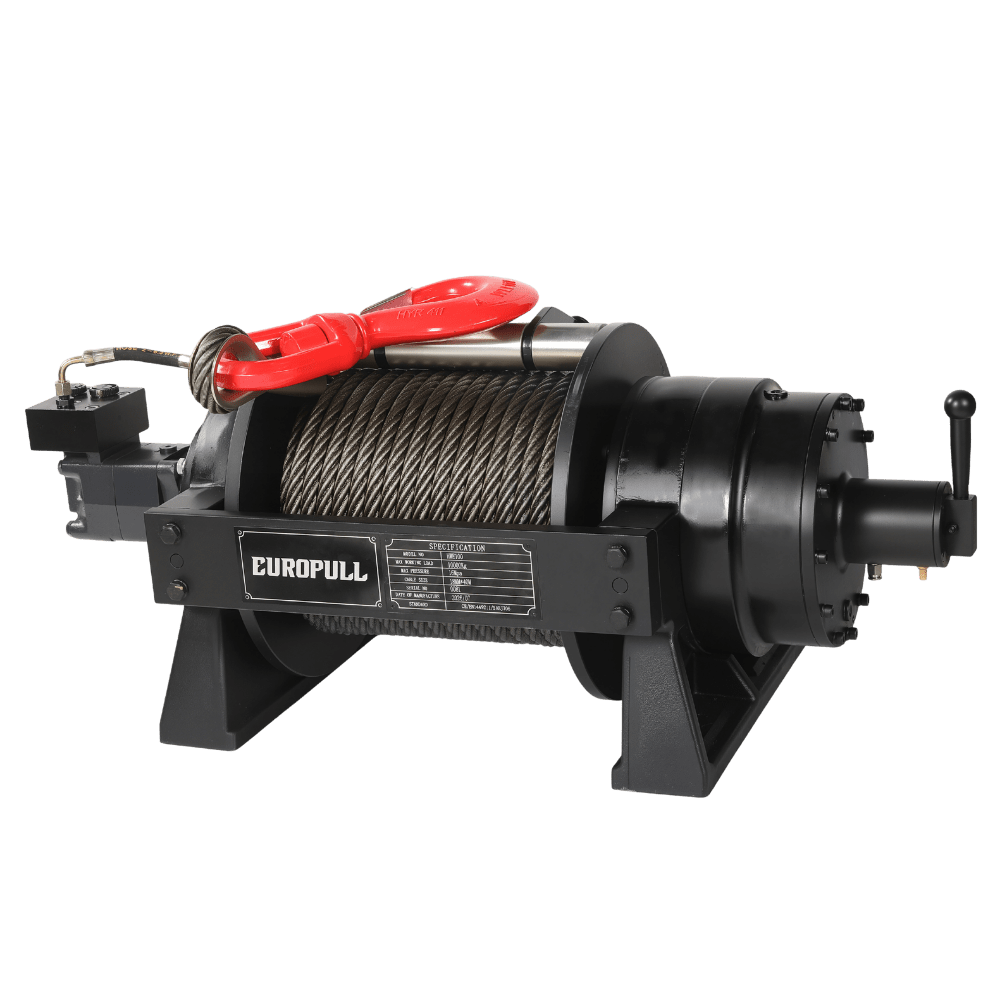

Europull HWE 150 Industrial Hydraulic Winch
HWE 150
33,000 lbs (15,000 kgs)

Rated line pull for handling heavy machinery and materials.

Pressure: 20 MPa
Oil Flow: 10–120 L/min
Gear Ratio: 40.6:1
Cable: Ø22mm × 40m
Net Weight: 400 kg
Request Quote HWE 150 Datasheet (PDF)
44,000 lbs

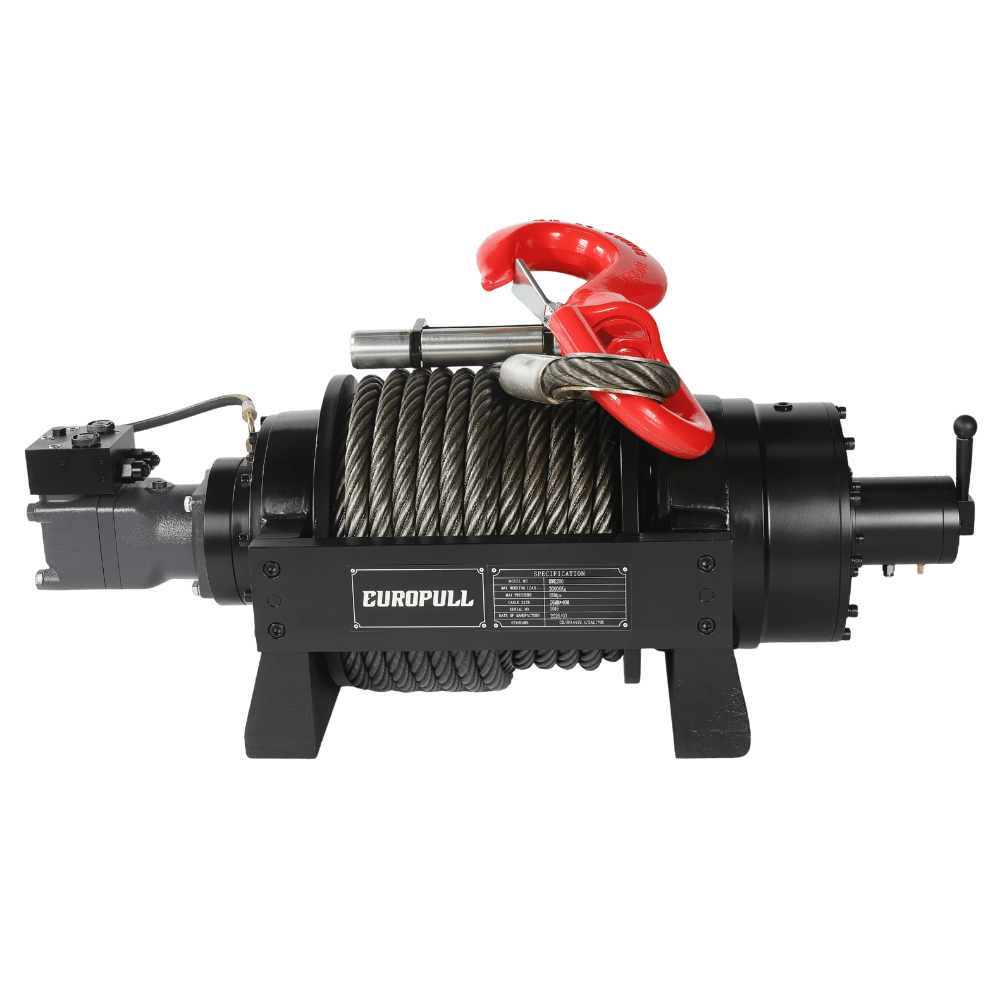

Europull HWE 200 Industrial Hydraulic Winch
HWE 200
44,000 lbs (20,000 kgs)

Rated line pull for heavy marine and contracting operations.

Pressure: 20 MPa
Oil Flow: 10–120 L/min
Gear Ratio: 36:1
Cable: Ø26mm × 40m
Net Weight: 505 kg
Request Quote HWE 200 Datasheet (PDF)
66,000 lbs / 30t

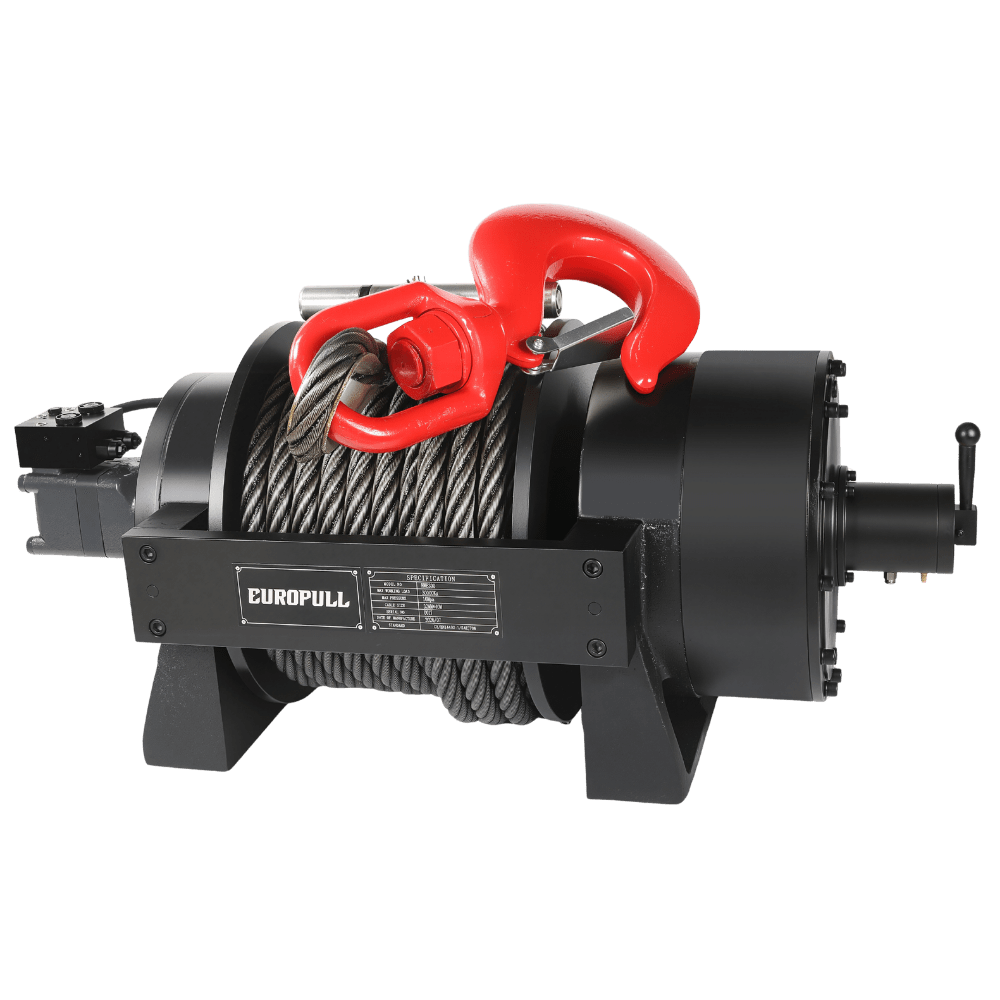

Europull HWE 300 Industrial Hydraulic Winch
HWE 300 (Flagship)
66,000 lbs (30,000 kgs)

Rated line pull for the most extreme heavy transport and energy sector requirements.

Pressure: 16 MPa
Oil Flow: 10–120 L/min
Gear Ratio: 53:1
Cable: Ø32mm × 40m
Net Weight: 930 kg
Request Quote HWE 300 Datasheet (PDF)

Europull EWB Electric Winch Series: Reliable 24V DC Performance

12,500 to 25,000 lbs (Vehicle & Towing)

For operations requiring dependable electrical power, the EWB Electric Winch Series utilizes highly efficient 24V DC series-wound motors. Housed within an IP67 waterproofed casing, these winches feature a 3-stage planetary steel gear system and our patented ratchet braking system for absolute load stability.

12,500 lbs

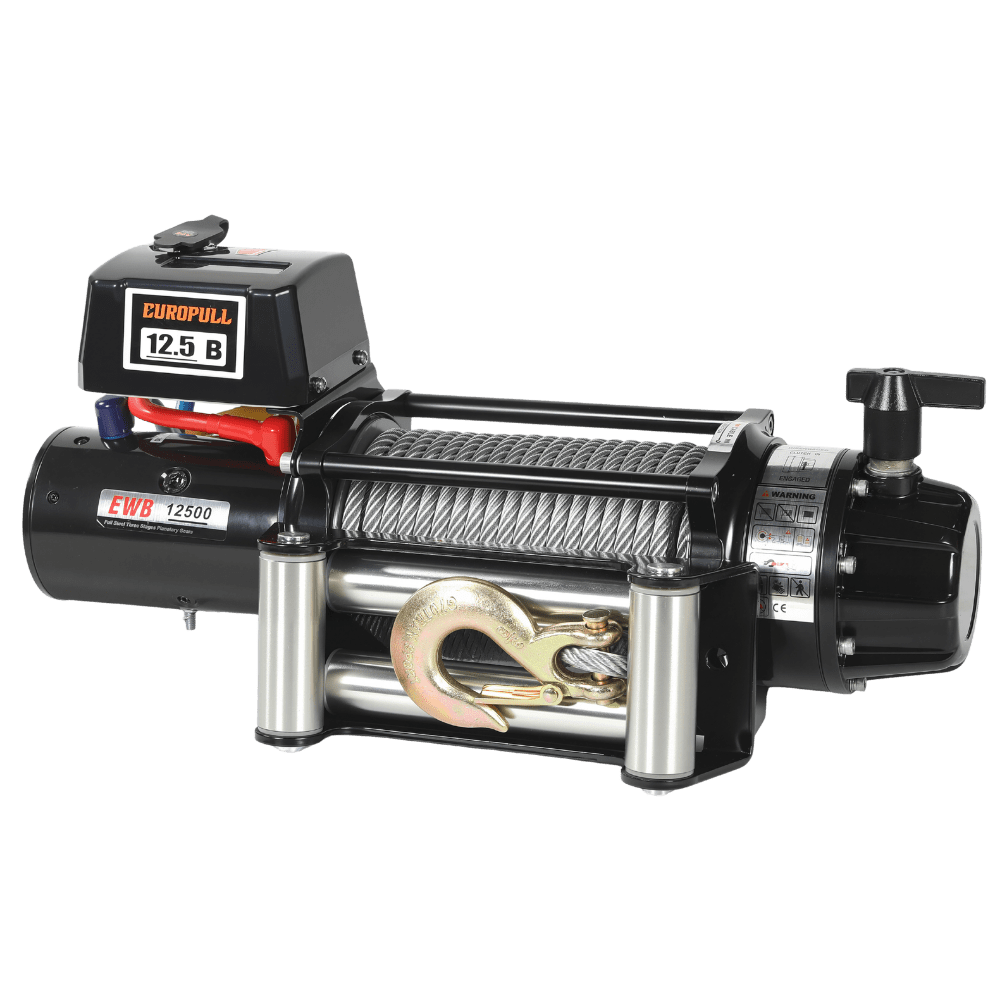

Europull EWB 12500 Electric Winch
EWB 12500
12,500 lbs (5,670 kgs)

Rated line pull for standard heavy-duty vehicle mounting.

Motor: 24V DC, 4.8 kW in / 3.1 kW out
Gear Ratio: 228:1
Clutch: Rotary
Cable: Ø10.2mm × 25.5m
Net Weight: 44.1 kg
Request Quote EWB 12500 Datasheet (PDF)
18,000 lbs

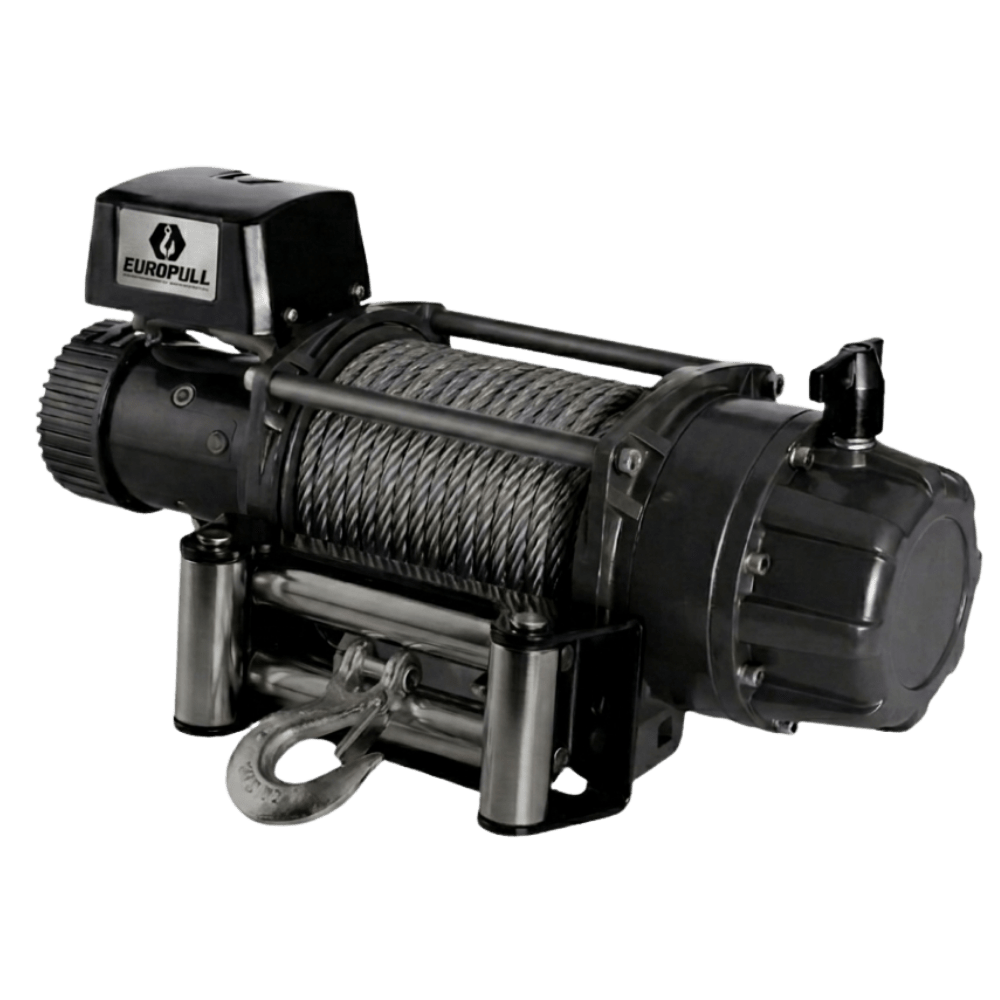

Europull EWB 18000 Electric Winch
EWB 18000
18,000 lbs (8,165 kgs)

Rated line pull for upgraded transport needs.

Motor: 24V DC, 6.1 kW in / 3.1 kW out
Gear Ratio: 370:1
Brake: Patented ratchet
Cable: Ø12mm × 26.5m
Net Weight: 67 kg
Request Quote EWB 18000 Datasheet (PDF)
20,000 lbs

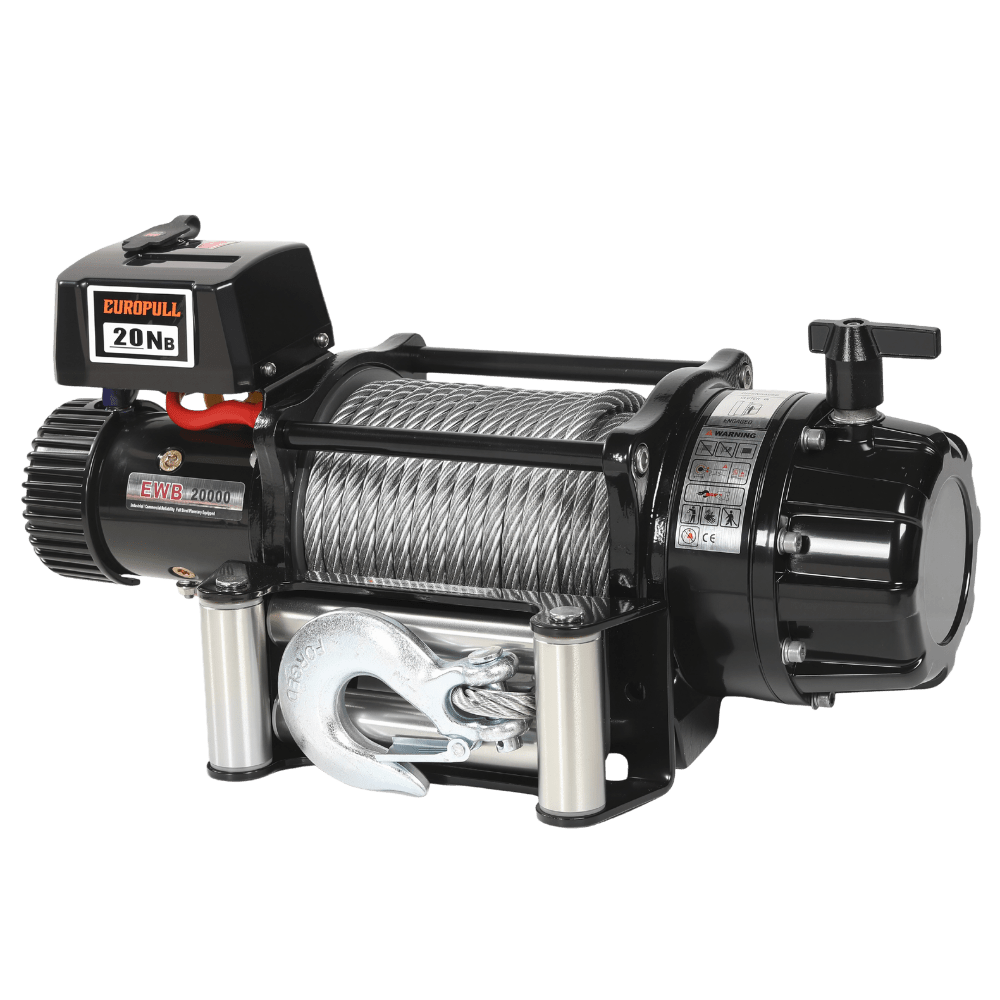

Europull EWB 20000 Electric Winch
EWB 20000
20,000 lbs (9,072 kgs)

Rated line pull, balancing high electrical efficiency with commercial strength.

Motor: 24V DC, 6.1 kW in / 3.1 kW out
Gear Ratio: 370:1
Brake: Patented ratchet
Cable: Ø12mm × 26.5m
Net Weight: 70 kg
Request Quote EWB 20000 Datasheet (PDF)
25,000 lbs / 11.3t

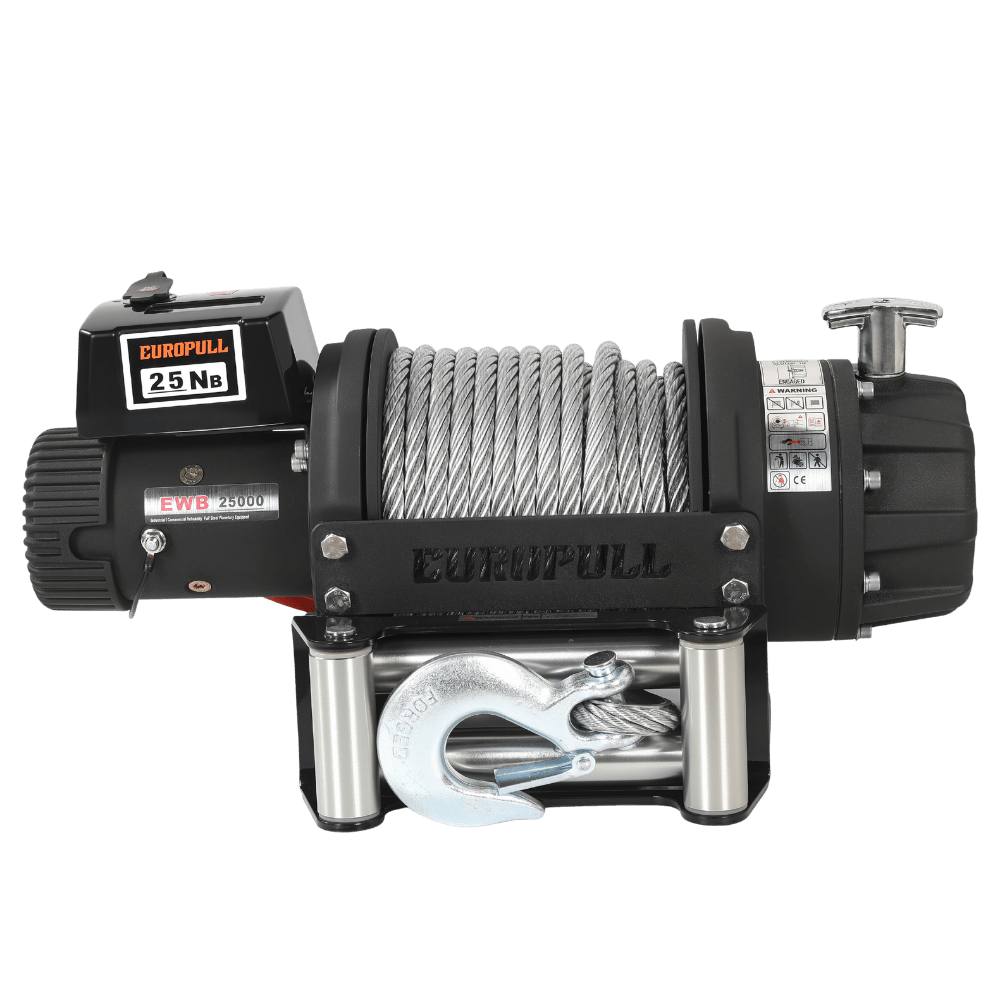

Europull EWB 25000 Electric Winch
EWB 25000 (Top Electric)
25,000 lbs (11,340 kgs)

Rated line pull for maximum 24V DC performance.

Motor: 24V DC, 6.1 kW in / 3.1 kW out
Gear Ratio: 450:1
Brake: Patented ratchet
Cable: Ø13.8mm × 26.5m
Net Weight: 99.5 kg
Request Quote EWB 25000 Datasheet (PDF)

Technical Specifications

Compare rated capacities, power units, gear architectures, and braking systems across all models
Model Series Rated Pull (lbs) Rated Pull (kg) Power / Motor Braking System Ingress Gear Ratio Cable (Dia×L) Net Weight
HWV 10000 Hydraulic 10,000 lbs 4,536 kg Hydraulic PTO Wet-Type Multi-Disc IP67 Sealed 17.6:1 Ø10.2mm × 25.5m 51 kg
HWV 12000 Hydraulic 12,000 lbs 5,443 kg Hydraulic PTO Wet-Type Multi-Disc IP67 Sealed 28:1 Ø10.2mm × 25.5m 42.8 kg
HWV 15000 Hydraulic 15,000 lbs 6,804 kg Hydraulic PTO Wet-Type Multi-Disc IP67 Sealed 17.3:1 Ø12mm × 26.5m 83.6 kg
HWE 100 Industrial 22,000 lbs 10,000 kg Industrial Hydraulic Wet-Type Multi-Disc IP67 Sealed 37.8:1 Ø18mm × 40m 340 kg
HWE 150 Industrial 33,000 lbs 15,000 kg Industrial Hydraulic Wet-Type Multi-Disc IP67 Sealed 40.6:1 Ø22mm × 40m 400 kg
HWE 200 Industrial 44,000 lbs 20,000 kg Industrial Hydraulic Wet-Type Multi-Disc IP67 Sealed 36:1 Ø26mm × 40m 505 kg
HWE 300 (Flagship) Industrial 66,000 lbs 30,000 kg Industrial Hydraulic Wet-Type Multi-Disc IP67 Sealed 53:1 Ø32mm × 40m 930 kg
EWB 12500 Electric 12,500 lbs 5,670 kg 24V DC Series Wound Patented Ratchet IP67 Sealed 228:1 Ø10.2mm × 25.5m 44.1 kg
EWB 18000 Electric 18,000 lbs 8,165 kg 24V DC Series Wound Patented Ratchet IP67 Sealed 370:1 Ø12mm × 26.5m 67 kg
EWB 20000 Electric 20,000 lbs 9,072 kg 24V DC Series Wound Patented Ratchet IP67 Sealed 370:1 Ø12mm × 26.5m 70 kg
EWB 25000 (Top Electric) Electric 25,000 lbs 11,340 kg 24V DC Series Wound Patented Ratchet IP67 Sealed 450:1 Ø13.8mm × 26.5m 99.5 kg

Full Model Datasheets

Complete factory specifications and first-layer performance data for every model
Download Winch Datasheets (PDF)

HWV 10000 — 10,000 lbs (4,536 kg) HWV Hydraulic

Download HWV 10000 Datasheet

Specifications
Rated line pull 10,000 lbs (4,536 kgs)
Standard European EN
Motor displacement 100 ml/r
Oil flow 15~60 L/min
Pressure 15 MPa
Brake Wet-type hydraulic brake
Geartrain Planetary steel gear
Gear reduction ratio 17.6:1
Clutch Air, manual, air & manual optional
Waterproof IP67
Cable (Dia×L) Ø13/32" × 83.7' (Ø10.2mm × 25.5m)
Drum size (Dia×L) Ø4.0" × 10.0" (Ø102mm × 253mm)
Mounting bolt pattern 14.7" × 4.5" (374.2mm × 114.3mm)
11.5" × 6.7" (291.6mm × 171.2mm) 8-M10
Net weight 112.4 lbs / 51 kgs
Performance Specs (first layer)
Line Pull
lbs (kg)		 Pressure
MPa (psi)		 Flow
gal/min (L/min)		 Line Speed
ft/min (m/min)		 Pull by Layer
layer / lbs (kg)
0 3.0 (435.1) 1.3 (5) 3.0 (0.9) 1 / 10000 (4536)
4000 (1814) 6.8 (986.2) 2.6 (10) 5.9 (1.8) 2 / 7355 (3336)
6000 (2722) 9.2 (1334.3) 5.2 (20) 11.8 (3.6) 3 / 6780 (3075)
8000 (3629) 12.0 (1740.4) 10.4 (40) 23.6 (7.2) 4 / 5711 (2591)
10000 (4536) 15.0 (2175) 15.6 (60) 36.1 (11) —

Download HWV 12000 Datasheet

Specifications
Rated line pull 12,000 lbs (5,443 kgs)
Motor displacement 65 ml/r
Oil flow 15~45 L/min
Pressure 11 MPa
Gear reduction ratio 28:1
Cable (Dia×L) Ø13/32" × 83.7' (Ø10.2mm × 25.5m)
Drum size (Dia×L) Ø2.48" × 8.45" (Ø63mm × 217mm)
Mounting bolt pattern 10" × 4.5" (254mm × 114.3mm) 4-M12
Net weight 94 lbs / 42.8 kgs
Performance Specs (first layer)
Line Pull
lbs (kg)		 Pressure
MPa (psi)		 Flow
gal/min (L/min)		 Line Speed
ft/min (m/min)		 Pull by Layer
layer / lbs (kg)
0 2.0 (290.1) 1.3 (5) 1.6 (0.5) 1 / 12000 (5443)
3000 (1361) 3.3 (478.6) 2.6 (10) 3.6 (1.1) 2 / 9563 (4338)
6000 (2722) 7.2 (1044.2) 5.2 (20) 7.5 (2.3) 3 / 7949 (3606)
9000 (4082) 9.2 (1344.3) 9.2 (35) 13.1 (4.0) 4 / 6801 (3085)
12000 (5443) 11.0 (1595.4) 11.9 (45) 17.4 (5.3) —

Download HWV 15000 Datasheet

Specifications
Rated line pull 15,000 lbs (6,804 kgs)
Standard European EN
Motor displacement 160 ml/r
Oil flow 15~60 L/min
Pressure 17.5 MPa
Brake Wet-type hydraulic brake
Geartrain Planetary steel gear
Gear reduction ratio 17.3:1
Clutch Air, manual, air & manual optional
Waterproof IP67
Cable (Dia×L) Ø15/32" × 86.9' (Ø12mm × 26.5m)
Drum size (Dia×L) Ø5.0" × 10.5" (Ø127mm × 266mm)
Mounting bolt pattern 12.0" × 4.5" (303.5mm × 114.3mm)
14.5" × 6.7" (368.5mm × 171.2mm) 8-M12
Net weight 184.3 lbs / 83.6 kgs
Performance Specs (first layer)
Line Pull
lbs (kg)		 Pressure
MPa (psi)		 Flow
gal/min (L/min)		 Line Speed
ft/min (m/min)		 Pull by Layer
layer / lbs (kg)
0 2.0 (290) 2.6 (10) 4.2 (1.3) 1 / 15000 (6804)
8000 (3629) 9.2 (1337) 5.2 (20) 8.5 (2.6) 2 / 12791 (5807)
10000 (4536) 11.5 (1627) 7.9 (30) 12.4 (3.8) 3 / 11150 (5062)
12000 (5448) 14.0 (2030) 10.4 (40) 16.7 (5.1) —
15000 (6810) 17.5 (2537) 15.6 (60) 23 (7.0) —

Download HWE 100 Datasheet

Specifications
Rated line pull 22,000 lbs (10,000 kgs)
Motor displacement 200 ml/r
Oil flow 15~75 L/min
Pressure 16 MPa
Brake Wet-type hydraulic brake
Geartrain 2-stage planetary alloy gear
Gear reduction ratio 37.8:1
Waterproof IP67
Cable (Dia×L) Ø5/7" × 131' (Ø18mm × 40m)
Drum size (Dia×L) Ø7.46" × 13.39" (Ø189.5mm × 340mm)
Mounting bolt pattern 20.55" × 7.09" × 11.02" (522mm × 180mm × 280mm) 8-M20
Net weight 340 kg
Performance Specs (first layer)
Line Pull
lbs (kg)		 Pressure
MPa (psi)		 Flow
gal/min (L/min)		 Line Speed
ft/min (m/min)		 Pull by Layer
layer / lbs (kg)
0 3.5 (507.5) 4.0 (15) 4.3 (1.3) 1 / 22000 (10000)
14500 (6577) 7 (1015) 10.6 (40) 10.8 (3.3) 2 / 18700 (8482)
16300 (7394) 10.5 (1522.5) 13.2 (50) 13.5 (4.1) 3 / 16300 (7394)
18700 (8482) 14 (2030) 15.9 (60) 15.8 (4.8) 4 / 14500 (6577)
22000 (10000) 16 (2320) 19.8 (75) 20.0 (6.1) —

Download HWE 150 Datasheet

Specifications
Rated line pull 33,000 lbs (15,000 kgs)
Motor displacement 250 ml/r
Oil flow 10~120 L/min
Pressure 20 MPa
Brake Wet-type hydraulic brake
Geartrain 2-stage planetary alloy gear
Gear reduction ratio 40.6:1
Waterproof IP67
Cable (Dia×L) Ø7/8" × 131' (Ø22mm × 40m)
Drum size (Dia×L) Ø8.27" × 13.39" (Ø210mm × 340mm)
Mounting bolt pattern 20.55" × 7.09" × 11.02" (522mm × 180mm × 280mm) 8-M20
Net weight 400 kg
Performance Specs (first layer)
Line Pull
lbs (kg)		 Pressure
MPa (psi)		 Flow
gal/min (L/min)		 Line Speed
ft/min (m/min)		 Pull by Layer
layer / lbs (kg)
0 4 (580.2) 5.3 (20) 4.3 (1.3) 1 / 33000 (15000)
21000 (9526) 10 (1450.4) 15.9 (60) 13.8 (4.2) 2 / 27700 (12565)
23900 (10841) 12 (1740.5) 21.1 (80) 18 (5.5) 3 / 23900 (10841)
27700 (12565) 15 (2175.6) 26.4 (100) 22.6 (6.9) 4 / 21000 (9526)
33000 (15000) 18 (2610.7) 33 (125) 27.9 (8.5) —

Download HWE 200 Datasheet

Specifications
Rated line pull 44,000 lbs (20,000 kgs)
Motor displacement 315 ml/r
Oil flow 10~120 L/min
Pressure 20 MPa
Brake Wet-type hydraulic brake
Geartrain 2-stage planetary alloy gear
Gear reduction ratio 36:1
Waterproof IP67
Cable (Dia×L) Ø1.02" × 131' (Ø26mm × 40m)
Drum size (Dia×L) Ø8.27" × 13.39" (Ø210mm × 340mm)
Mounting bolt pattern 20.94" × 6.3" × 11.02" (532mm × 160mm × 280mm) 8-M24
Net weight 505 kg
Performance Specs (first layer)
Line Pull
lbs (kg)		 Pressure
MPa (psi)		 Flow
gal/min (L/min)		 Line Speed
ft/min (m/min)		 Pull by Layer
layer / lbs (kg)
0 7.5 (1087.8) 5.3 (20) 3.3 (1.0) 1 / 44000 (20000)
22000 (10000) 10 (1450.4) 13.2 (50) 8.9 (2.7) 2 / 36128 (16388)
33000 (15000) 15 (2175.6) 22.5 (85) 15.4 (4.7) 3 / 30600 (13882)
44000 (20000) 20 (2900.8) 31.7 (120) 23.0 (7.0) 4 / 26543 (12040)

Download HWE 300 Datasheet

Specifications
Rated line pull 66,000 lbs (30,000 kgs)
Motor displacement 500 ml/r
Oil flow 10~120 L/min
Pressure 16 MPa
Brake Wet-type hydraulic brake
Geartrain 2-stage planetary alloy gear
Gear reduction ratio 53:1
Waterproof IP67
Cable (Dia×L) Ø1.26" × 131' (Ø32mm × 40m)
Drum size (Dia×L) Ø10.63" × 14.2" (Ø270mm × 360mm)
Mounting bolt pattern 24" × 6.7" × 11.2" (610mm × 170mm × 310mm) 8-M27
Net weight 930 kg
Performance Specs (first layer)
Line Pull
lbs (kg)		 Pressure
MPa (psi)		 Flow
gal/min (L/min)		 Line Speed
ft/min (m/min)		 Pull by Layer
layer / lbs (kg)
0 7 (1015.3) 5.3 (20) 2.0 (0.6) 1 / 66000 (30000)
44000 (20000) 11 (1595.4) 13.2 (50) 5.2 (1.6) 2 / 54572 (24754)
55000 (25000) 14 (2030.5) 22.5 (85) 9.8 (3.0) 3 / 46450 (21070)
66000 (30000) 16 (2320.6) 31.7 (120) 13.5 (4.1) 4 / 40432 (18340)

Download EWB 12500 Datasheet

Specifications
Rated line pull 12,500 lbs (5,670 kgs)
Motor Series wound, 24V — Input: 4.8kW/6.4hp; Output: 3.1kW/4.2hp
Brake Ratchet
Geartrain 3-stage planetary steel gear
Gear reduction ratio 228:1
Clutch Rotary
Waterproof IP67
Cable (Dia×L) Ø13/32" × 83.7' (Ø10.2mm × 25.5m)
Drum size (Dia×L) Ø2.48" × 8.5" (Ø63mm × 217mm)
Mounting bolt pattern 10" × 4.5" (254mm × 114.3mm) 4-M10
Net weight 97.2 lbs / 44.1 kgs
24V DC Performance Specs (first layer)
Line Pull
lbs (kg)		 Line Speed
ft/min (m/min)		 Motor Current Pull by Layer
layer / lbs (kg)
0 32.8 (10.0) 75 amps 1 / 12500 (5670)
3000 (1361) 15.7 (4.8) 190 amps 2 / 9776 (4434)
6000 (2722) 11.5 (3.5) 285 amps 3 / 8026 (3641)
9000 (4082) 8.2 (2.5) 360 amps 4 / 6808 (3088)
12500 (5670) 5.2 (1.6) 490 amps —

Download EWB 18000 Datasheet

Specifications
Rated line pull 18,000 lbs (8,165 kgs)
Motor Series wound, 24V — Input: 6.1kW/8.2hp; Output: 3.1kW/4.2hp
Brake Patented ratchet
Geartrain 3-stage planetary steel gear
Gear reduction ratio 370:1
Waterproof IP67
Cable (Dia×L) Ø15/32" × 87' (Ø12mm × 26.5m)
Drum size (Dia×L) Ø3.46" × 8.43" (Ø88mm × 214mm)
Mounting bolt pattern 10" × 4.5" (254mm × 114.3mm)
10" × 6.5" (254mm × 165.1mm)
Net weight 147.7 lbs / 67 kgs
24V DC Performance Specs (first layer)
Line Pull
lbs (kg)		 Line Speed
ft/min (m/min)		 Motor Current Pull by Layer
layer / lbs (kg)
0 26.2 (8.0) 60 amps 1 / 18000 (8165)
6000 (2722) 10.5 (3.2) 180 amps 2 / 14516 (6584)
10000 (4536) 7.87 (2.4) 260 amps 3 / 12162 (5516)
14000 (6350) 6.56 (2.0) 320 amps 4 / 10465 (4747)
18000 (8165) 4.92 (1.5) 360 amps —

Download EWB 20000 Datasheet

Specifications
Rated line pull 20,000 lbs (9,072 kgs)
Motor Series wound, 24V — Input: 6.1kW/8.2hp; Output: 3.1kW/4.2hp
Brake Patented ratchet
Geartrain 3-stage planetary steel gear
Gear reduction ratio 370:1
Waterproof IP67
Cable (Dia×L) Ø15/32" × 87' (Ø12mm × 26.5m)
Drum size (Dia×L) Ø3.46" × 8.43" (Ø88mm × 214mm)
Mounting bolt pattern 10" × 4.5" (254mm × 114.3mm)
10" × 6.5" (254mm × 165.1mm)
Net weight 154.3 lbs / 70 kgs
Performance Specs (first layer)

The model-specific first-layer pull chart for the EWB 20000 is available on request — email info@europull.com for the full performance data.

Download EWB 25000 Datasheet

Specifications
Rated line pull 25,000 lbs (11,340 kgs)
Motor Series wound, 24V — Input: 6.1kW/8.2hp; Output: 3.1kW/4.2hp
Brake Patented ratchet
Geartrain 3-stage planetary steel gear
Gear reduction ratio 450:1
Waterproof IP67
Cable (Dia×L) Ø7/13" × 87' (Ø13.8mm × 26.5m)
Drum size (Dia×L) Ø4.72" × 7.8" (Ø128mm × 198mm)
Mounting bolt pattern 10" × 4.5" (254mm × 114.3mm)
10" × 7.5" (254mm × 199.5mm)
Net weight 219.4 lbs / 99.5 kgs
24V DC Performance Specs (first layer)
Line Pull
lbs (kg)		 Line Speed
ft/min (m/min)		 Motor Current Pull by Layer
layer / lbs (kg)
0 30.3 (9.2) 23 amps 1 / 25000 (11340)
5000 (2266) 11.1 (3.4) 90 amps 2 / 20724 (9460)
10000 (4536) 8.2 (2.5) 140 amps 3 / 17698 (8027)
15000 (6804) 6.6 (2.0) 180 amps 4 / 15444 (7005)
20000 (9072) 5.2 (1.6) 230 amps —
25000 (11340) 4.0 (1.2) 280 amps —

Engineered for Global Industries & Extreme Environments

Powering shipbuilding, marine, electro-mechanical, civil construction, erection, and heavy contracting projects worldwide

Europull Hebentechnik UK Ltd winches are successfully utilized across shipbuilding, marine, electro-mechanical projects, civil construction, erection projects, factory works, and heavy contracting projects worldwide. While our engineering roots are in the UK, our equipment powers major industrial hubs across the globe.

Saudi Arabia (KSA)
Riyadh Jeddah Dammam Jubail Yanbu Neom Tabuk Qiddiyah Al Khobar Al Kharaj Baqiq Ras Tanura Tanajeeb Jizan
United Arab Emirates
Abu Dhabi Dubai Sharjah

Serving ports, shipyards, marine logistics, and heavy construction projects across all emirates.

Broader Middle East
Bahrain Qatar Oman Jordan Kuwait Iraq

Direct regional supply for oilfield operations, offshore tensioning, and infrastructure pipelines.

Africa Hubs
Egypt Tunisia Libya Algeria Morocco Ghana

Mining sites, port facilities, and resource development corridors with certified pulling equipment.

Complete Europull Hebentechnik UK Ltd Lifting & Rigging Portfolio

A comprehensive ecosystem of rigging hardware and material handling solutions designed to exacting engineering standards
Hoists
Trolleys
Clamps
Material Handling
Accessories & Shackles

Connect With Europull Hebentechnik UK Ltd

Experience the European standard of lifting technology, engineered for the global stage

We Provide Safety, Stability & Engineering Expertise

Experience the European standard of lifting technology, engineered for the global stage. We provide the safety, stability, and engineering expertise your industry demands.

Frequently Asked Questions (FAQ)

Key engineering and operational specifications for Europull winches and lifting equipment

What standards do Europull Hebentechnik UK Ltd winches and lifting equipment meet?

All Europull equipment is engineered to exceed stringent international safety standards, fully complying with CE, EN, and ASME certifications.

The Europull HWE Hydraulic Winch Series offers exceptional power, with the flagship HWE 300 model providing a maximum rated line pull of 66,000 lbs (30,000 kgs).

Yes. All winch models across the HWV, HWE, and EWB series feature IP67 waterproofing, making them highly resistant to dust, moisture, and water ingress in challenging offshore, shipyard, or mining environments.

The HWV and HWE hydraulic series utilize highly reliable wet-type hydraulic brakes, while the EWB electric series features a patented ratchet braking system for secure load holding.

Your winch selection depends on your vehicle’s payload. For light 3-ton to 5-ton trucks, the HWV 10000 or 12000 models are ideal. For medium 7-ton to 10-ton heavy-duty applications, the HWV 15000 or EWB electric series provide perfect capacity. For heavy-duty 15-ton to 30-ton recovery rotators, the industrial HWE series delivers massive pulling power. If you are upgrading your current rigging system, our technical team can cross-reference your required specs to match you with the exact Europull equivalent.
