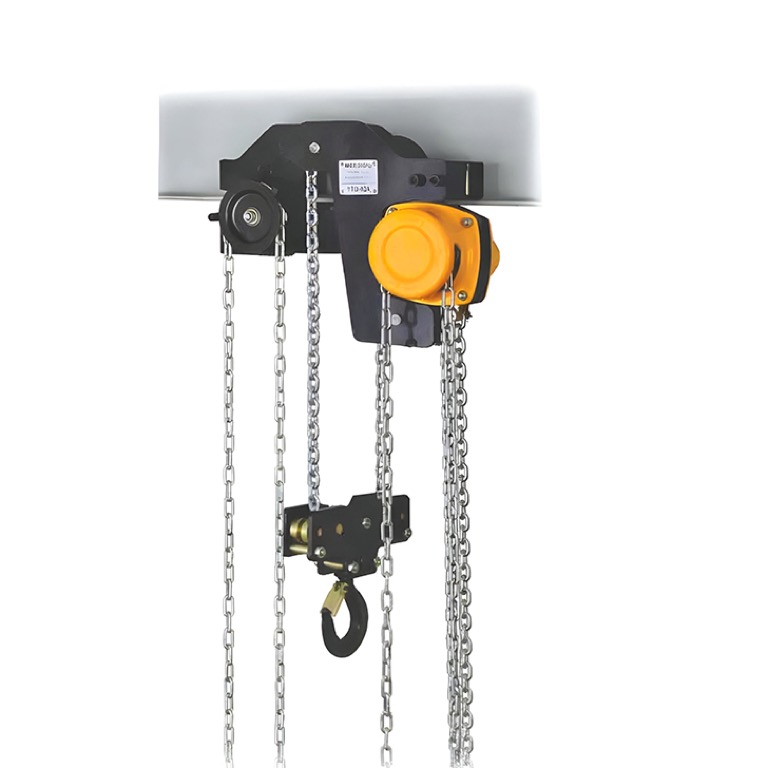

Europull Low Head Room Manual Hoist
Manual chain hoist integrated into a low-headroom geared or push trolley, allowing heavy lifting in spaces with extremely limited overhead clearance.
- Capacity0.5t - 10t
- HeadroomUltra Low
Need sizing help? Email info@europull.com
- Certified to EN 13157
- 6 models available
Technical Specifications
Model-by-model data for the Europull Low Head Room Manual Hoist range.
| Model | Capacity (Tons) | Min Headroom (mm) | Beam Flange (mm) | Proof Load (kN) | Net Weight (kg) |
|---|---|---|---|---|---|
| EPC-MLH05 | 0.5 Ton | 185 mm | 64 - 152 mm | 7.5 kN | 18 kg |
| EPC-MLH10 | 1.0 Ton | 210 mm | 64 - 203 mm | 15.0 kN | 26 kg |
| EPC-MLH20 | 2.0 Ton | 260 mm | 88 - 203 mm | 30.0 kN | 42 kg |
| EPC-MLH30 | 3.0 Ton | 310 mm | 102 - 305 mm | 45.0 kN | 68 kg |
| EPC-MLH50 | 5.0 Ton | 380 mm | 114 - 305 mm | 75.0 kN | 115 kg |
| EPC-MLH100 | 10.0 Ton | 480 mm | 125 - 305 mm | 150.0 kN | 210 kg |
Need a model or configuration not listed? Email our engineering team or download the full catalog (PDF).
Key Parameters
| Parameter | Specification | Highlight |
|---|---|---|
| Standard / Norms | EN 13157 / CE Certified | Certified |
| Rated Capacity | 0.5 Ton to 10 Ton | 0.5t - 10t |
| Design Style | Integrated Trolley & Hoist Monoblock Frame | Minimum Headroom |
| Flange Width | Adjustable from 64 mm to 305 mm | Universal Fit |
| Load Chain | Grade 80 Calibrated Galvanized Chain (EN 818-7) | Calibrated |
| Brake | Weston Style Double-Pawl Automatic Brake | Fail-Safe |
| Application | Tunnels, Marine Engine Rooms, Mezzanines | Confined Overhead |
Key Features & Advantages
Direct Monoblock Integration
Eliminates the top hook connection to gain crucial vertical lift inches.
Machined Steel Wheels
Equipped with sealed ball bearings and anti-drop safety plates.
Standards & Compliance
EN 13157 Compliance
Hand powered hoist and trolley standard.
CE Certified
150% proof load tested.
Product Overview
When standard hoist dimensions restrict vertical load travel, the Europull Low Headroom Manual Hoist provides the maximum possible hook elevation while maintaining full heavy-duty industrial reliability.
Frequently Asked Questions
The Europull Low Head Room Manual Hoist is available in 6 models: EPC-MLH05, EPC-MLH10, EPC-MLH20, EPC-MLH30, EPC-MLH50, EPC-MLH100. Capacity (Tons) ranges from 0.5 Ton to 10.0 Ton. Full figures for every model are in the technical specifications table on this page.
The Europull Low Head Room Manual Hoist covers 0.5t - 10t.
The Europull Low Head Room Manual Hoist is manufactured to EN 13157.
The Europull Low Head Room Manual Hoist's design Style: Integrated Trolley & Hoist Monoblock Frame.
The Europull Low Head Room Manual Hoist's flange Width: Adjustable from 64 mm to 305 mm.
The Europull Low Head Room Manual Hoist's load Chain: Grade 80 Calibrated Galvanized Chain (EN 818-7).
Click "Request a Quote" on this page to add the Low Head Room Manual Hoist to your quote cart, or email info@europull.com with the model code and quantity you need.
