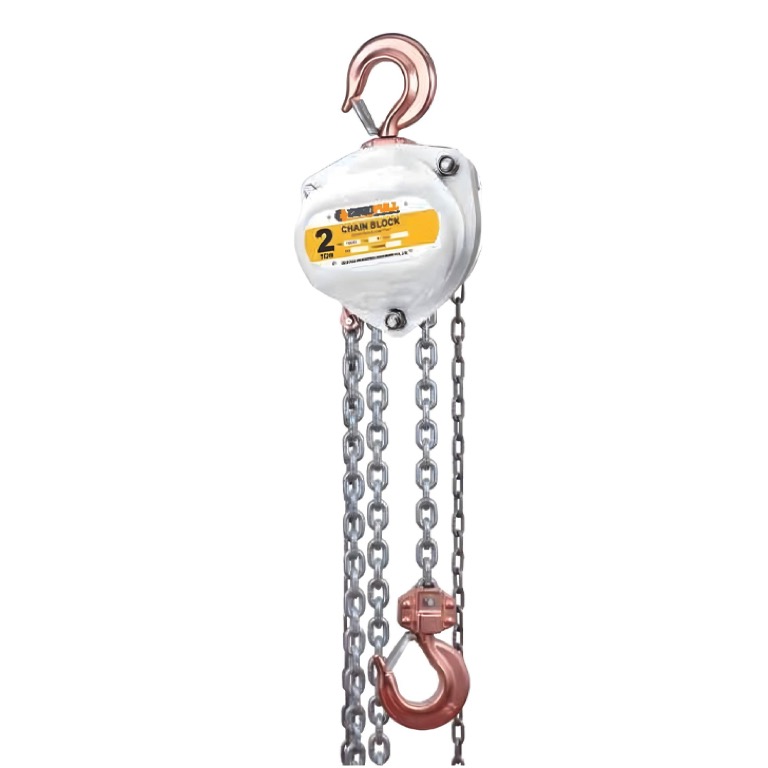

Europull Spark Proof Chain Hoist
Explosion-proof and spark-resistant manual chain hoist equipped with copper-beryllium / aluminum-bronze hooks, hand wheels, and stainless load chain for ATEX Zone 1 & 2 hazardous environments.
- Capacity0.5t - 20t
- SafetyATEX Zone 1 & 2 Spark Proof
Need sizing help? Email info@europull.com
- Certified to ATEX / EN 13157
- 5 models available
Technical Specifications
Model-by-model data for the Europull Spark Proof Chain Hoist range.
| Model | Capacity (Tons) | Falls | Chain (mm) | Std Lift (m) | Proof Load (kN) | Net Weight (kg) |
|---|---|---|---|---|---|---|
| EPC-EX05 | 0.5 Ton | 1 | 6 × 18 mm | 3.0 m | 7.5 kN | 11.5 kg |
| EPC-EX10 | 1.0 Ton | 1 | 6 × 18 mm | 3.0 m | 15.0 kN | 13.5 kg |
| EPC-EX20 | 2.0 Ton | 1 | 8 × 24 mm | 3.0 m | 30.0 kN | 22.5 kg |
| EPC-EX30 | 3.0 Ton | 2 | 8 × 24 mm | 3.0 m | 45.0 kN | 29.5 kg |
| EPC-EX50 | 5.0 Ton | 2 | 10 × 30 mm | 3.0 m | 75.0 kN | 45.0 kg |
Need a model or configuration not listed? Email our engineering team or download the full catalog (PDF).
Key Parameters
| Parameter | Specification | Highlight |
|---|---|---|
| ATEX Classification | ATEX Ex II 2GD c IIB T4 / Zone 1, 2 Gas & Dust | ATEX Certified |
| Rated Capacity | 0.5 Ton to 20 Ton | 0.5t - 20t |
| Hook Material | Solid Copper-Beryllium / High-Grade Aluminum Bronze | Non-Sparking |
| Load Chain | Calibrated Stainless Steel / Bronze Coated Alloy Chain | Spark-Proof |
| Braking System | Friction Spark-Resistant Weston Double Pawl | Enclosed |
| Safety Factor | 4:1 Working Safety Ratio | Proof Tested |
| Application | Petrochemical Refineries, Gas Storage, Offshore | Hazardous Areas |
Key Features & Advantages
Non-Sparking Components
Eliminates potential friction sparks during operation in volatile atmospheres.
ATEX Zone 1 & 2 Approved
Safe for explosive gases, vapors, and combustible dust environments.
Double Pawl Safety
Enclosed Weston brake mechanism ensures reliable non-slip load holding.
Standards & Compliance
ATEX Directive 2014/34/EU
Equipment for potentially explosive atmospheres.
EN 13157 Compliance
Certified hoist lifting safety standards.
Product Overview
Designed specifically for oil refineries, chemical plants, offshore gas extraction platforms, paint spray facilities, and grain processing facilities where spark risk could trigger catastrophic ignition.
Frequently Asked Questions
The Europull Spark Proof Chain Hoist is available in 5 models: EPC-EX05, EPC-EX10, EPC-EX20, EPC-EX30, EPC-EX50. Capacity (Tons) ranges from 0.5 Ton to 5.0 Ton. Full figures for every model are in the technical specifications table on this page.
The Europull Spark Proof Chain Hoist covers 0.5t - 20t.
The Europull Spark Proof Chain Hoist is manufactured to ATEX / EN 13157.
The Europull Spark Proof Chain Hoist's aTEX Classification: ATEX Ex II 2GD c IIB T4 / Zone 1, 2 Gas & Dust.
The Europull Spark Proof Chain Hoist's hook Material: Solid Copper-Beryllium / High-Grade Aluminum Bronze.
The Europull Spark Proof Chain Hoist's load Chain: Calibrated Stainless Steel / Bronze Coated Alloy Chain.
Click "Request a Quote" on this page to add the Spark Proof Chain Hoist to your quote cart, or email info@europull.com with the model code and quantity you need.
