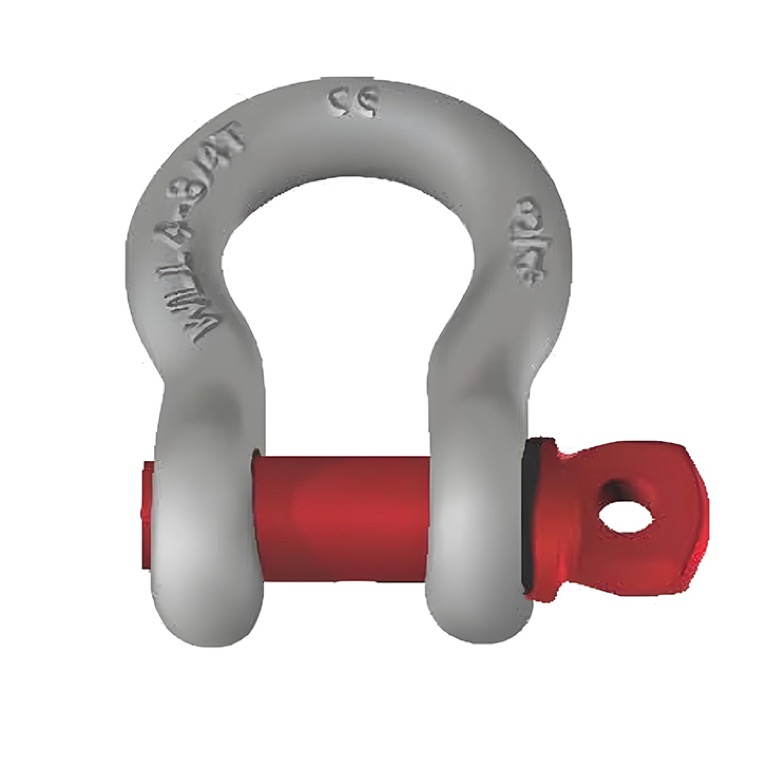

Europull Bow Shackle EP209
Drop-forged alloy steel screw pin bow shackle designed for fast attachment and non-permanent rigging applications in compliance with US Fed. Spec. RR-C-271.
- Safety Factor6:1
- TypeScrew Pin
Need sizing help? Email info@europull.com
- Certified to US Fed. Spec. RR-C-271
- 9 models available
- Safety factor 6:1
Technical Specifications
Model-by-model data for the Europull Bow Shackle EP209 range.
| WLL (Tons) | Nominal Size | Pin Dia (mm) | Jaw Width (mm) | Bow Dia (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 1.0 Ton | 3/8" | 11 mm | 17 mm | 26 mm | 0.14 kg |
| 2.0 Ton | 1/2" | 16 mm | 21 mm | 33 mm | 0.33 kg |
| 3.25 Ton | 5/8" | 19 mm | 27 mm | 43 mm | 0.58 kg |
| 4.75 Ton | 3/4" | 22 mm | 31 mm | 51 mm | 1.07 kg |
| 6.5 Ton | 7/8" | 25 mm | 36 mm | 58 mm | 1.64 kg |
| 8.5 Ton | 1" | 28 mm | 43 mm | 68 mm | 2.28 kg |
| 12.0 Ton | 1-1/4" | 35 mm | 51 mm | 82 mm | 4.32 kg |
| 17.0 Ton | 1-1/2" | 42 mm | 60 mm | 98 mm | 7.18 kg |
| 25.0 Ton | 1-3/4" | 50 mm | 74 mm | 127 mm | 12.6 kg |
Need a model or configuration not listed? Email our engineering team or download the full catalog (PDF).
Key Parameters
| Parameter | Specification | Highlight |
|---|---|---|
| Standard / Norms | US Fed. Spec. RR-C-271 Type IVA Class 2 | Grade 80 |
| Rated WLL | 0.5 Ton to 55 Ton | 0.5t - 55t |
| Pin Type | Threaded Screw Pin with Flat Eye for Easy Turning | Quick Release |
| Safety Factor | 6:1 Design Safety Ratio | Proof Tested |
| Finish | Hot Dip Galvanized with Red Painted Alloy Pin | Corrosion Proof |
Key Features & Advantages
Rapid Screw Pin Assembly
Enables rapid rigging and removal without tools.
Alloy Steel Forging
High tensile forged body ensures outstanding ductile yield properties.
Standards & Compliance
US Fed. Spec. RR-C-271
Forged screw pin shackle specification.
6:1 Safety Factor
CE certified with batch test certificates.
Product Overview
Ideal for temporary lifting, towing, towing bridles, and anchor connections where shackles are frequently connected and disconnected.
Frequently Asked Questions
The Europull Bow Shackle EP209 is available in 9 models: 1.0 Ton, 2.0 Ton, 3.25 Ton, 4.75 Ton, 6.5 Ton, 8.5 Ton, 12.0 Ton, 17.0 Ton, 25.0 Ton. Nominal Size ranges from 3/8" to 1-3/4". Full figures for every model are in the technical specifications table on this page.
The Europull Bow Shackle EP209 is manufactured to US Fed. Spec. RR-C-271. It is designed with a 6:1 safety factor.
The Europull Bow Shackle EP209's pin Type: Threaded Screw Pin with Flat Eye for Easy Turning.
The Europull Bow Shackle EP209's safety Factor: 6:1 Design Safety Ratio.
The Europull Bow Shackle EP209's finish: Hot Dip Galvanized with Red Painted Alloy Pin.
Click "Request a Quote" on this page to add the Bow Shackle EP209 to your quote cart, or email info@europull.com with the model code and quantity you need.
