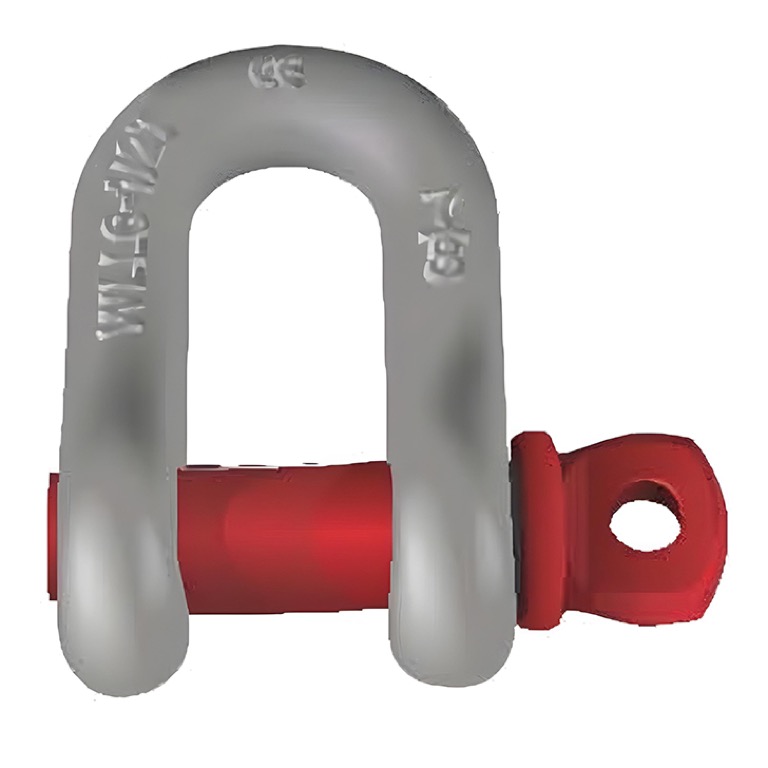

Europull D Shackle EP210
Heavy-duty drop-forged alloy steel D-shackle (Dee Shackle) with screw pin, engineered for straight-line in-line tension and rigging connections.
- Safety Factor6:1
- FinishHot Dip Galvanized
Need sizing help? Email info@europull.com
- Certified to US Fed. Spec. RR-C-271
- 9 models available
Technical Specifications
Model-by-model data for the Europull D Shackle EP210 range.
| WLL (Tons) | Nominal Size | Pin Dia (mm) | Jaw Width (mm) | Body Length | Weight (kg) |
|---|---|---|---|---|---|
| 1.0 Ton | 3/8" | 11 mm | 17 mm | 31 mm | 0.13 kg |
| 2.0 Ton | 1/2" | 16 mm | 21 mm | 41 mm | 0.30 kg |
| 3.25 Ton | 5/8" | 19 mm | 27 mm | 51 mm | 0.62 kg |
| 4.75 Ton | 3/4" | 22 mm | 31 mm | 60 mm | 1.00 kg |
| 6.5 Ton | 7/8" | 25 mm | 36 mm | 71 mm | 1.52 kg |
| 8.5 Ton | 1" | 28 mm | 43 mm | 81 mm | 2.27 kg |
| 12.0 Ton | 1-1/4" | 35 mm | 51 mm | 100 mm | 4.10 kg |
| 17.0 Ton | 1-1/2" | 42 mm | 60 mm | 122 mm | 7.80 kg |
| 25.0 Ton | 1-3/4" | 50 mm | 74 mm | 146 mm | 13.2 kg |
Need a model or configuration not listed? Email our engineering team or download the full catalog (PDF).
Key Parameters
| Parameter | Specification | Highlight |
|---|---|---|
| Standard / Norms | US Fed. Spec. RR-C-271 Type IVB Class 2 | Grade 80 |
| Rated WLL | 0.5 Ton to 35 Ton | 0.5t - 35t |
| Shape | Straight D-Shape for In-Line Pulling | In-Line Pull |
| Pin Type | Threaded Screw Pin | Quick Release |
| Safety Factor | 6:1 Design Factor | Proof Tested |
| Finish | Hot Dip Galvanized Body | Rust Proof |
Key Features & Advantages
Narrow In-Line Jaw
Prevents load slipping off center during direct vertical or single-line pulling.
Grade 80 Alloy Forging
High tensile strength for critical lifting and pulling.
Standards & Compliance
US Fed. Spec. RR-C-271
Type IVB Dee shackle.
CE Certified
Proof tested to 2.0x WLL.
Product Overview
The Europull EP210 Dee Shackle is tailored for straight in-line tension loads, such as connecting single wire rope eyes, chain slings, and towing bridles.
Frequently Asked Questions
The Europull D Shackle EP210 is available in 9 models: 1.0 Ton, 2.0 Ton, 3.25 Ton, 4.75 Ton, 6.5 Ton, 8.5 Ton, 12.0 Ton, 17.0 Ton, 25.0 Ton. Nominal Size ranges from 3/8" to 1-3/4". Full figures for every model are in the technical specifications table on this page.
The Europull D Shackle EP210 is manufactured to US Fed. Spec. RR-C-271.
The Europull D Shackle EP210's shape: Straight D-Shape for In-Line Pulling.
The Europull D Shackle EP210's pin Type: Threaded Screw Pin.
The Europull D Shackle EP210's safety Factor: 6:1 Design Factor.
Click "Request a Quote" on this page to add the D Shackle EP210 to your quote cart, or email info@europull.com with the model code and quantity you need.
